3M 10001 Copper Standard Barrel Connector
$5.40/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 10001
Irby Part # 22662

Overview

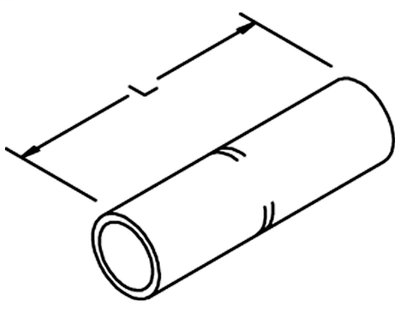

The 3M Scotchlok Copper Standard Barrel Connector 10001 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper. This connector is a Blue, 6 AWG with a length of 1,7 in (44,5 mm), and a 0,19 in (5 mm) I.D.

Specifications

  • Inside Diameter: 0.2 Inch
  • Length: 1.75 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Color Code: Blue
  • For Use With: Copper Conductor Only
  • Length (Metric): 44.4 mm
  • Connector Base Metal: Copper
  • Outside Diameter (metric): 7.4 mm
  • Barrel Style: Standard Barrel
  • Trademark: Scotchlok
  • Outside Diameter: 0.29 Inch
  • Maximum Voltage: 35 Kilovolt
  • RoHS 2011/65/EU Compliant: Yes
  • Inside Diameter (metric): 5.1 mm
  • Stranded Conductor Sizes: 6 AWG

Documents

Overview

UPC 05400712717
GTiN 00054007127178
Length 1.75 in
Color Blue
Family Brand Name 3M
Sub Brand Scotchlok
Barrel Type Standard Barrel
Conductor Size 6 AWG
Inside Diameter 0.2 in

Substitutes (2)
