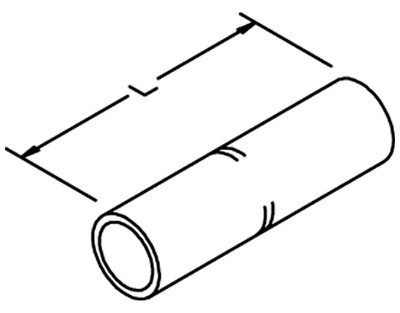

3M 10002 Copper Standard Barrel Connector
$6.00/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 10002
Irby Part # 22663

Overview

The 3M Scotchlok Copper Standard Barrel Connector 10002 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

Specifications

  • RoHS 2011/65/EU Compliant: Yes
  • Maximum Voltage: 35 Kilovolt
  • Inside Diameter: 0.25 Inch
  • Connector Base Metal: Copper
  • Outside Diameter: 0.34 Inch
  • Barrel Style: Standard Barrel
  • Length: 1.75 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Color Code: Gray
  • Outside Diameter (metric): 8.6 mm
  • For Use With: Copper Conductor Only
  • Trademark: Scotchlok
  • Length (Metric): 44.4 mm
  • Stranded Conductor Sizes: 4 AWG
  • Inside Diameter (metric): 6.4 mm

Documents

Overview

UPC 05400712725
GTiN 00054007127253
Length 1.75 in
Width 0.34 in
Applications Copper Conductor Only
Family Brand Name 3M
Sub Brand Scotchlok
Color Gray
Barrel Type Standard Barrel
Conductor Size 4 AWG
Inside Diameter 0.25 in
