3M 10003 Copper Standard Barrel Connector
$6.30/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 10003
Irby Part # 22664

Overview

The 3M Scotchlok Copper Standard Barrel Connector 10003 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

Specifications

  • RoHS 2011/65/EU Compliant: Yes
  • Maximum Voltage: 35 Kilovolt
  • Inside Diameter: 0.31 Inch
  • For Use With: Copper Conductor Only
  • Connector Base Metal: Copper
  • Inside Diameter (metric): 7.8 mm

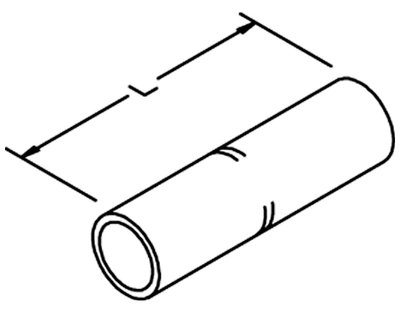

  • Length: 1.88 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Color Code: Brown
  • Outside Diameter: 0.42 Inch
  • Length (Metric): 47.7 mm
  • Outside Diameter (metric): 10.6 mm
  • Trademark: Scotchlok
  • Stranded Conductor Sizes: 2 AWG
  • Barrel Style: Standard Barrel

Documents

Categories

Overview

UPC 05400712733
GTiN 00054007127338
Length 1.88 in
Width 0.42 in
Color Brown
Barrel Type Standard Barrel
Conductor Size 2 AWG
Applications Copper Conductor Only
Family Brand Name 3M
Inside Diameter 0.31 in
Sub Brand Scotchlok
