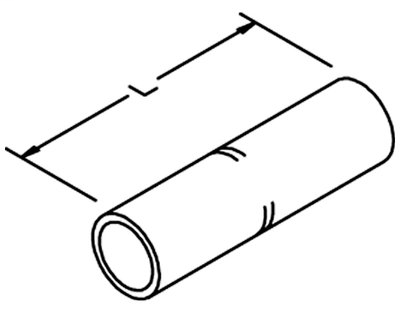

3M 10004 Copper Standard Barrel Connector
$6.70/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 10004
Irby Part # 22665

Overview

The 3M Scotchlok Copper Standard Barrel Connector 10004 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

Specifications

  • Stranded Conductor Sizes: 1 AWG
  • Length: 1.88 Inch
  • Connector Base Metal: Copper
  • Outside Diameter (metric): 11.7 mm
  • Outside Diameter: 0.46 Inch
  • For Use With: Copper Conductor Only
  • Maximum Voltage: 35 Kilovolt
  • Color Code: Green
  • Inside Diameter (metric): 9.1 mm
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Barrel Style: Standard Barrel
  • Agency Approvals: UL Listed
  • Inside Diameter: 0.36 Inch
  • Length (Metric): 47.7 mm
  • Trademark: Scotchlok
  • RoHS 2011/65/EU Compliant: Yes

Documents

Overview

UPC 05400712758
GTiN 00054007127581
Length 1.88 in
Width 0.46 in
Applications Copper Conductor Only
Family Brand Name 3M
Sub Brand Scotchlok
Color Green
Barrel Type Standard Barrel
Conductor Size 1 AWG
Inside Diameter 0.36 in
