3M 10006 Copper Standard Barrel Connector
$7.70/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 10006
Irby Part # 22667

Overview

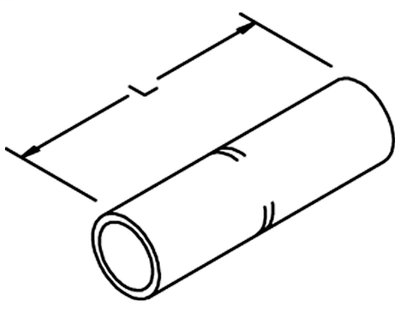

The 3M Scotchlok Copper Standard Barrel Connector 10006 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper. This connector is a Black, 2/0 AWG with a length of 2 in (50,8 mm), and a 0.439 in (11,2 mm) I.D.

Specifications

  • Barrel Style: Standard Barrel
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Outside Diameter: 0.56 Inch
  • Color Code: Black
  • RoHS 2011/65/EU Compliant: Yes
  • Inside Diameter: 0.44 Inch
  • Length: 2 Inch
  • Stranded Conductor Sizes: 2/0 AWG
  • For Use With: Copper Conductor Only
  • Trademark: Scotchlok
  • Connector Base Metal: Copper
  • Maximum Voltage: 35 Kilovolt
  • Length (Metric): 50.8 mm
  • Inside Diameter (metric): 11.2 mm
  • Outside Diameter (metric): 14.2 mm

Documents

Overview

UPC 05400712774
GTiN 00054007127741
Length 2 in
Width 0.56 in
Color Black
Applications Copper Conductor Only
Family Brand Name 3M
Sub Brand Scotchlok
Barrel Type Standard Barrel
Conductor Size 2/0 AWG
Inside Diameter 0.44 in
