3M 10007 10007 COPPER COMPRESSION C
$8.00/ea
In Stock | 4 available at 1 location
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 10007
Irby Part # 3662937

Overview

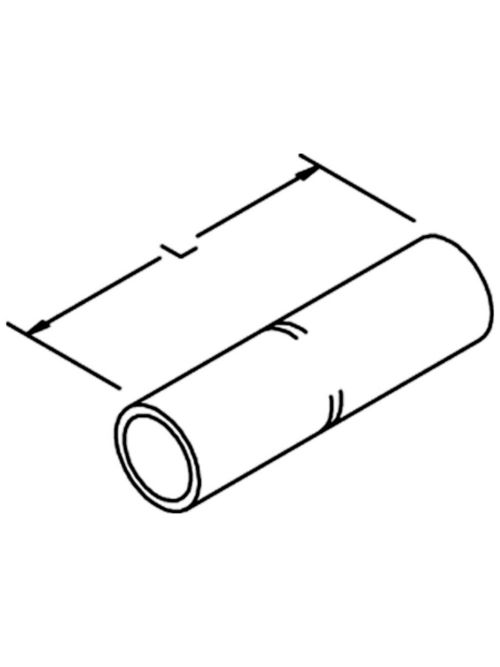

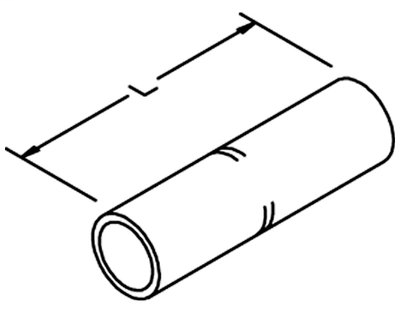

The 3M Scotchlok Copper Standard Barrel Connector 10007 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

Specifications

  • Connector Base Metal: Copper
  • Length: 2.13 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Length (Metric): 54 mm
  • Outside Diameter (metric): 15.7 mm
  • Inside Diameter: 0.49 Inch
  • Color Code: Orange
  • Barrel Style: Standard Barrel
  • Stranded Conductor Sizes: 3/0 AWG
  • Trademark: Scotchlok
  • For Use With: Copper Conductor Only
  • RoHS 2011/65/EU Compliant: Yes
  • Outside Diameter: 0.62 Inch
  • Maximum Voltage: 35 Kilovolt
  • Inside Diameter (metric): 12.4 mm

Documents

Overview

UPC 05400712790
GTiN 00054007127901
Length 2.13 in
Width 0.62 in
Color Orange
Applications Copper Conductor Only
Family Brand Name 3M
Sub Brand Scotchlok
Barrel Type Standard Barrel
Conductor Size 3/0 AWG
Inside Diameter 0.49 in
