3M 10008 Copper Standard Barrel Connector
$8.90/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 10008
Irby Part # 215989

Overview

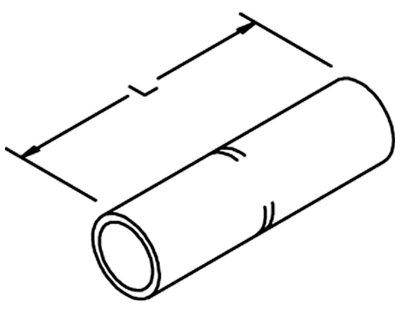

The 3M Scotchlok Copper Standard Barrel Connector 10008 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper. This connector is a Violet, 4/0 AWG with a length of 2,1 in (54 mm), and a 0,54 in (13,9 mm) I.D.

Specifications

  • Outside Diameter (metric): 17.4 mm
  • Length (Metric): 54 mm
  • For Use With: Copper Conductor Only
  • Length: 2.13 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Maximum Voltage: 35 Kilovolt
  • Stranded Conductor Sizes: 4/0 AWG
  • Color Code: Purple
  • Inside Diameter: 0.55 Inch
  • Barrel Style: Standard Barrel
  • Inside Diameter (metric): 14.0 mm
  • Agency Approvals: UL Listed
  • Connector Base Metal: Copper
  • Trademark: Scotchlok
  • Outside Diameter: 0.69 Inch

Documents

Overview

UPC 05400712816
GTiN 00054007128168
Length 2.13 in
Width 0.69 in
Color Purple
Applications Copper Conductor Only
Family Brand Name 3M
Sub Brand Scotchlok
Barrel Type Standard Barrel
Conductor Size 4/0 AWG
Inside Diameter 0.55 in
