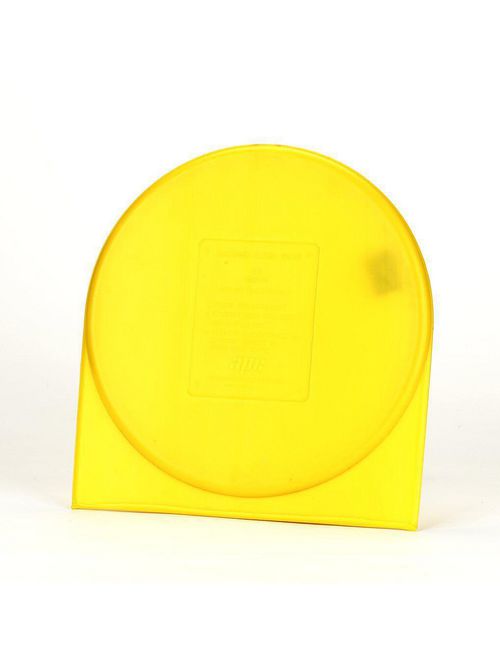

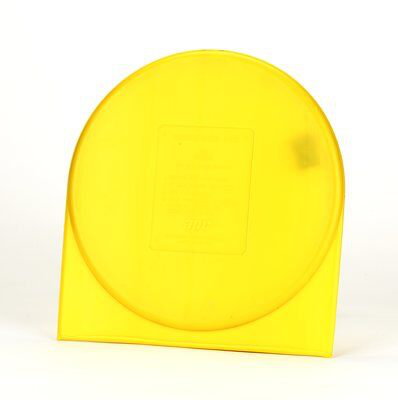

3M 1254 1254 FULL-RANGE MARKER - GA
$25.80/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 1254
Irby Part # 3465508

Features

  • Positive Identification of underground assets
  • No external power source needed
  • 3M™ EMS Full Range Markers provide an accurate, convenient, long lasting method of marking underground facilities.
  • Resistant to elements
  • Full Range markers are ideally suited for marking the location of utilities buried at a deep distance. Passive full range markers will provide accurate identification of buried power lines, helping to reduce the risk of accidentally excavating other buried facilities. All markers function without the need for an external power source. Their water resistant polyetheline shells are impervious to minerals, chemicals and the temperature extremes normally found underground. An iD version is available which allows for the storage of customer specific information about the underground asset.
  • Color conforms to APWA standards

Suggested Applications

  • Gas Industry

Specifications

  • 3M ID: 80610221550
  • Application/Industry: Gas
  • Brand: 3M™
  • Burial Depth (Imperial): 8 ft
  • Burial Depth (Metric): 2.4 m
  • Color Family: Yellow
  • Marker Depth: 8 feet (2.4m)
  • Marker Dimension (inch): 15 inch Diameter x 0.65 inch Thick
  • Marker Finding Capability: Yes
  • Marker Function: Passive
  • Marker Type: Full Range
  • Minimum Order Quantity: 25
  • Number of Frequencies: N/A
  • Overall Diameter (Imperial): 15 in
  • Overall Diameter (Metric): 38.1 cm || 38.1 cm
  • Overall Height (Metric): 1.65 cm || 1.65 cm
  • Product Color: Yellow
  • Range: 0 to 8 Linear Foot
  • Solution for: Access Network: FTTH/FTTB/CATV || Access Network: xDSL || Long-haul/Metro Loop Network: Outdoor || Wireless Network: Backhaul
  • Transmitter Output: N/A
  • Utility Type: Gas

Overview

UPC 05400737731
GTiN 00054007377313
Color Yellow
Material HDPE
Applications buried electronic marker
Family Brand Name 3M
Diameter 15 in
Height 1.65 cm
