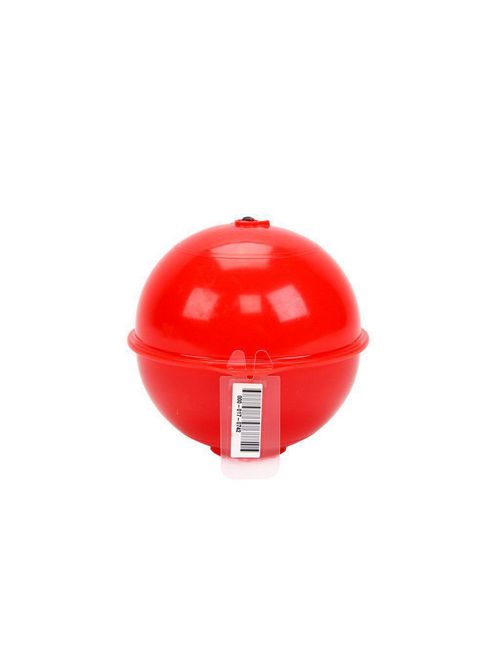

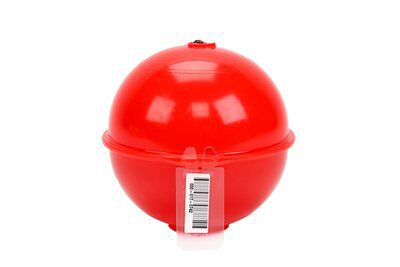

3M 1422-XR/iD ID EXTENDED RANGE BAL

Features

• Self-leveling design for precise and horizontal positioning
• Offers easy marking of buried power lines
• 3M™ EMS Extended Range Ball Marker is specially designed for locating flush mounted facilities that are covered by backfill. It is affixed to the underside of non metallic lids or covers over flush mounted facilities. This self align marker offers positive identification of facilities.
• Passive antenna encased in water-resistant polyethylene shell
• 3M™ EMS Extended Range Ball Marker provides an effective way of marking underground facility lines. It withstands a temperature range of 4 to 122 °F ( 20 to 50 °C). This passive underground marker with a water resistant polyethylene shell does not react with any chemicals or minerals. This ball marker effectively operates without the need for any external power source.
• Withstands a temperature range of -4 to 122 °F (-20 to 50 °C)
• Works without any external power source

Suggested Applications

• Power Industry

Specifications

• 3M ID: 80611142201
• Application/Industry: Power
• Burial Depth (Imperial): 5 ft
• Burial Depth (Metric): 1.53 m
• Color Family: Red
• Marker Depth: 5 feet (1.5m)
• Marker Dimension (inch): 4 inch Diameter
• Marker Finding Capability: Yes
• Marker Function: Programmable
• Marker Type: Ball
• Minimum Order Quantity: 30
• Number of Frequencies: N/A
• Overall Diameter (Imperial): 4 in
• Overall Diameter (Metric): 10.16 cm || 10.16 cm
• Overall Height (Metric): 10.4 cm || 10.4 cm
• Product Color: Red
• Range: 0 to 5 Linear Foot
• Solution for: Access Network: FTTH/FTTB/CATV || Access Network: xDSL || Long-haul/Metro Loop Network: Outdoor || Wireless Network: Backhaul
• Transmitter Output: N/A
• Utility Type: Power
