VINYL ELECTRICAL TAPE 1" X 66'
$1.90/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 1700-1X66FT
Irby Part # 287232

Overview

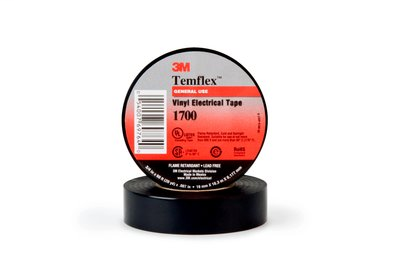

3M Temflex General Use Vinyl Electrical Tape 1700 is used for protective jacketing and harnessing. Flame retardant and cold resistant. UL Listed and CSA Certified for 176(deg)F (80(deg)C).

Specifications

  • Breaking Strength: 17 lb/in
  • Product Family: 3M Temflex Vinyl Electrical Tape 1700
  • Backing Material: Polyvinyl Chloride
  • Specifications: ASTM D 2301 Type 1
  • Tape Grade: General Use
  • Trademark: Temflex
  • Width: 1 Inch
  • Agency Approvals: ASTM D 2301 Type 1, CSA, MSHA Approved (1700P only), UL Listed
  • Dielectric Strength (V/mil): 1000 V/mil
  • Operating Temperature (Celsius): 0 to 80 Degree Celsius
  • Thickness: 7 mil
  • Color: Black
  • Tape Type: Vinyl
  • Family: 3M Temflex Vinyl Electrical Tape 1700
  • Length: 66 Linear Foot
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Operating Temperature (Fahrenheit): 32 to 176 Degree Fahrenheit
  • RoHS 2011/65/EU Compliant: Yes
  • Voltage Application: Low Voltage
  • Adhesive Material: Rubber Resin

Documents

Overview

UPC 05400743962
GTiN 00054007439622
Length 66 LF
Width 1 in
Size 1x66ft
Color Black
Material PVC
Applications General Use
Family Brand Name 3M
Sub Brand Temflex
Adhesive Type Rubber Resin
Operating Temperature 0 To 80 C
Thickness 7 mil
Dielectric Strength 1000 V
