3M 1755-1-1/2x82-1/2FT Friction Tape
$18.00/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 1755-1-1/2X82-1/2FT
Irby Part # 124975

Overview

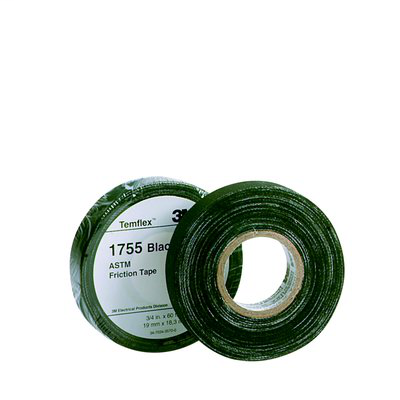

3M™ Temflex™ Cotton Friction Tape 1755 is a high-grade, black friction tape designed to provide mechanical protection against abrasion and cut-through for cable, wire splices and connections insulated with rubber electrical tape.

The 13-mil thick tape is composed of a high-quality cotton fabric, coated on both sides with an electrical-grade, solvent-free, rubber adhesive. Tape has high break strength and low stretch, making it ideal as a heavy-duty binding and harnessing tape.

  • 1 1/2 in x 82 1/2 ft, Black
  • High-grade, 13-mil friction tape
  • Mechanical protection against abrasion and cut-through for cable, wire splices and connections insulated with rubber electrical tape
  • Composed of a high-quality cotton fabric, coated on both sides with an electrical-grade, solvent-free, rubber adhesive
  • High break strength and low stretch
  • Ideal as a heavy-duty binding and harnessing tape

Specifications

  • 3M ID: 80610731715
  • Adhesive Material: Thermosetable rubber resin
  • Backing Material: Cotton Cloth
  • Breaking Strength: 48 lb/in
  • Case Quantity: 30 Rolls
  • Color: Black
  • Family: 3M™ Temflex™ Cotton Friction Tape 1755
  • Insulated: No
  • Length: 82.5 Linear Foot
  • Length (Metric): 25.1 m
  • Material: PVC
  • Maximum Operating Temperature (Celsius): 80 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 176 Degree Fahrenheit
  • Operating Temperature Range (Celsius): -10 °C to 80 °C
  • Operating Temperature Range (Fahrenheit): 15 °F to 176 °F
  • Product Markets: Electrical Construction, Electrical MRO, Power Distribution
  • Product Type: Friction Tape
  • RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Rolls per Carton: 1
  • Rolls per Case: 30
  • Self-Extinguishing: Sunlight Resistant
  • Self Sticking/Amalgamating: Sunlight Resistant
  • Suitable for High Voltage: Sunlight Resistant
  • Tape Grade: General Use
  • Tape Type: Special Use
  • Tape Width (metric): 19 mm
  • Tensile Strength: 3700 Pound-Force Per Square Inch
  • Tensile Strength lb/in (N/100 mm): 48 (140)
  • Thickness: 13 mil
  • Thickness (Metric): 0.33 mm
  • Trademark: Scotch®
  • UV Resistant: No, UV Resistant
  • Vulcanizing: Sunlight Resistant
  • Width: 1.5 Inch
  • Width (Metric): 38.1 mm

Overview

UPC 05400750217
GTiN 00054007502173
Length 82.5 LF
Width 1.5 in
Size 1-1/2x82-1/2FT
Family Brand Name 3M
Sub Brand Temflex
Color Black
Thickness 0.33 mm
Material PVC,Polyvinyl Chloride
Product Type Friction Tape
Max Operating Temperature 176 degrees F
