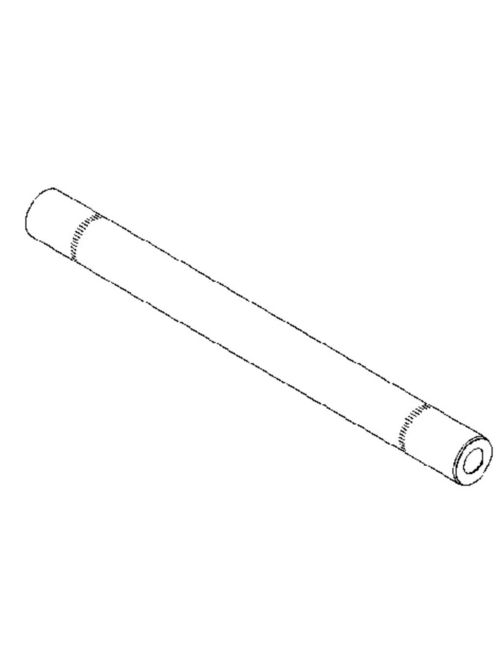

3M 20005 20005 ALUMINUM COMPRESSION

Features

• Standard barrel ensures reliable performance
• Built-in solid center oil stop
• Made of aluminum for good conductivity and has corrosion-resistant tin plating
• Rated up to 35 kV
• Meets ANSI C119.4 and RoHS 2011/65/EU Compliant
• Barrel has color stripes that help to indicate the wire range

Specifications

• Barrel Style: Standard Barrel
• Body Material: Aluminum
• Color Family: Beige
• Connector Base Metal: Aluminum
• Connector Type: Compression
• Electrical Connector Type: Compression Connectors
• For Use With: Aluminum or Copper Conductors
• Indoor/Outdoor: Both
• Inside Diameter (Metric): 9.9 mm
• Insulation Material: Non Pertinent
• Maximum Conductor Size: 1/0 AWG
• Maximum Operating Voltage: 35 Kilovolt
• Maximum Stranded Conductor Size: 1/0 AWG
• Minimum Conductor Size: 1/0 AWG
• Outer Diameter (Imperial): 0.64 in
• Outside Diameter (Metric): 16.3 mm
• Overall Length (Imperial): 2.12 in
• Overall Length (Metric): 53.8 mm
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
