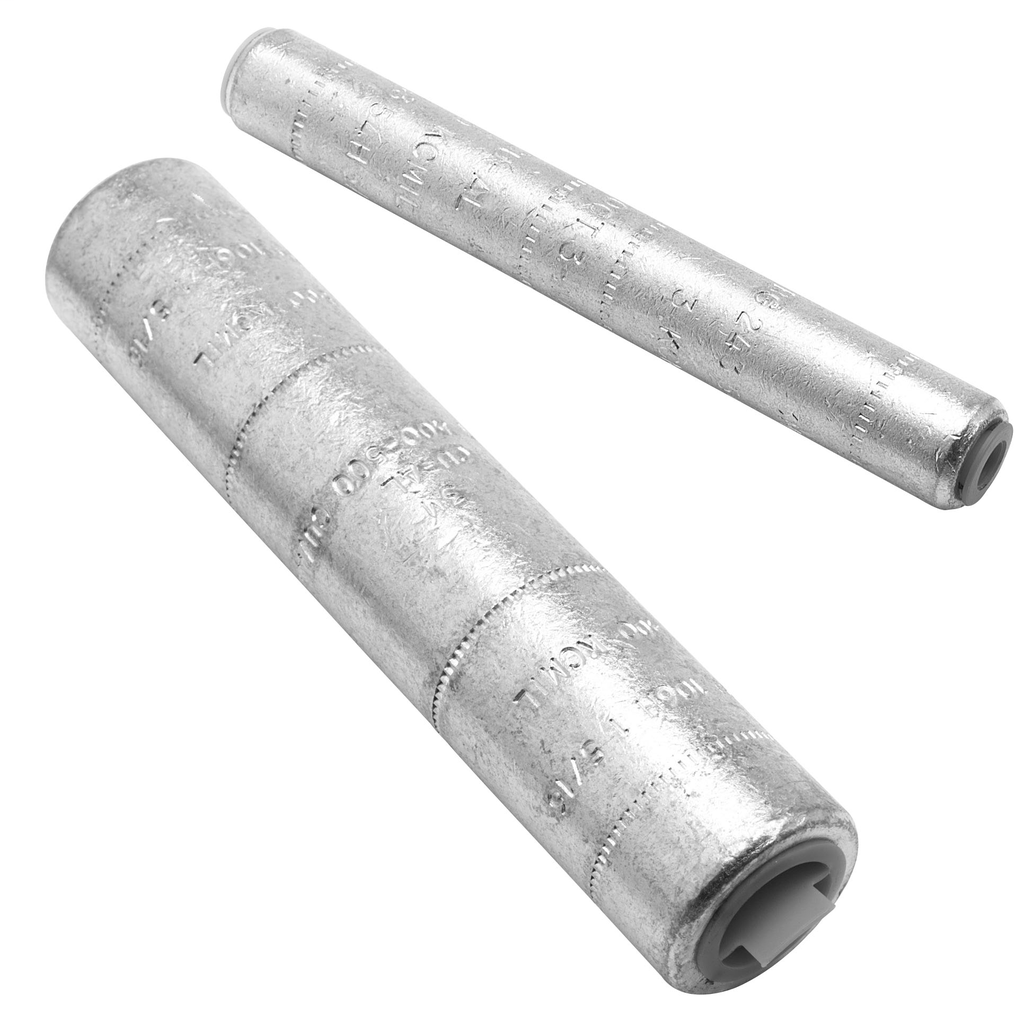

3M 2000T-4/0-350 2000T 4/0-350 CU/A
$38.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 2000T-4/0-350
Irby Part # 136719

Features

  • The barrel diameters on each end are different, to allow connecting conductors of different size
  • They can be used on concentric, compressed and compact stranded conductors

Specifications

  • Body Material: Aluminum
  • Connector Type: Transition Compression
  • Insulation Material: Non Pertinent
  • Maximum Conductor Size: 350 kcmil
  • Minimum Conductor Size: 4/0 kcmil
  • Overall Length (Metric): 119.38 mm
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption

Overview

UPC 05400742231
Item Long Description The 3M Scotchlok Connectors 20000 Series can be used with either copper or aluminum conductors. These aluminum connectors feature color coded end caps for identification. Contact aid provided in connector is compatible with poly/EPR insulations. Each connector is electro tin plated to resist electrolytic corrosion, and have a solid center stop. (UL 486B Listed)
GTiN 00054007422310
Family Brand Name 3M
Overall Length 119.38 mm
