3M 2000T-4/0-CU Oil Stop Copper Con
$65.50/ea
Usually ships within 16 to 26 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 2000T-4/0-CU
Irby Part # 2995418

Overview

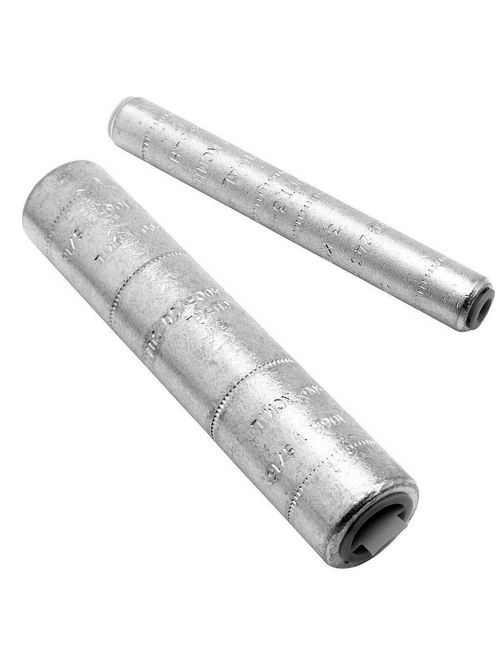

3M™ Scotchlok™ 2000T-CU Connector is a copper inline sleeve that is ideal for use with copper conductor cables of the same size. The connector is specially designed for use with the PILC power cable and has a built-in solid center oil stop that allows for correct positioning. It is rated for 35 kV voltage applications.

3M™ Scotchlok™ 2000T-CU Connector is specially designed for use with the 3M Cold Shrink Kits QS-2000T, QS-2000-3T, and CS500Pb Series. It is also suitable for Scotch® Tape Splice Kit 5700 Series. This connector is ideal for use on concentric, compressed and compact stranded conductors. ANSI Certified.

  • Standard barrel ensures a secure fit and offers reliable performance
  • Built-in solid center oil stop allows for correct positioning
  • Ideal for use with copper conductor cables of the same size
  • Specially designed for use with PILC power cables
  • Size 0.88-in O.D. x 5.25-in L
  • Accommodates wire size of 4/0 AWG (stranded)
  • Made of copper for good conductivity
  • Rated for 35 kV voltage applications
  • ANSI Certified
  • 3/case

Specifications

  • 3M ID: 80610920524
  • Barrel Style: Standard Barrel
  • Case Quantity: 3
  • Connector Base Metal: Copper
  • Electrical Connector Type: Compression Connectors
  • For Use With: Copper Conductor Only
  • Length: 5.25 Inch
  • Length (Metric): 133.3 mm
  • Maximum Voltage: 35 Kilovolt
  • Outside Diameter: 0.88 Inch
  • Outside Diameter (metric): 22.3 mm
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Trademark: Scotchlok

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400742252
GTiN 00054007422525
Family Brand Name 3M
Length 5.25 in
Barrel Type Standard Barrel
Outside Diameter 0.88 in
Max Voltage 35 kV
