3M 2104A 2104A ELECTRICAL INSULATIN
$21.30/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 2104A
Irby Part # 3701900

Overview

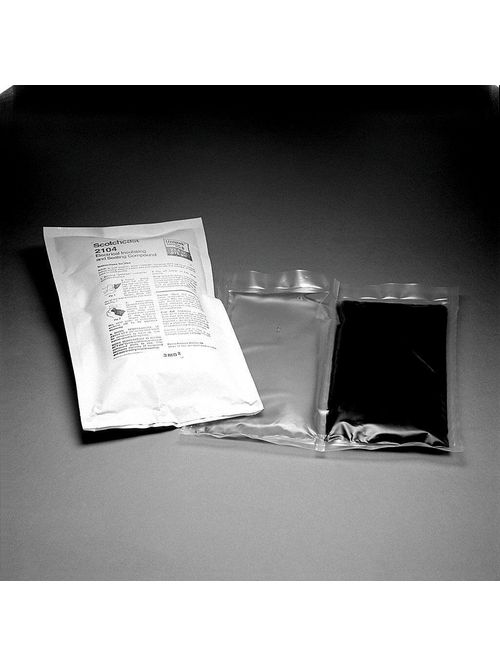

3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104 is a 2-part, liquid-type, semi-flexible resin useful for providing permanent splice protection. This polyurethane resin has a good wetting and impregnating property, which makes it easy to infuse on any surface. It is useful for applications that include filling, potting, sealing, insulating and more.

3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104 has a low gel point rating to ensure curing at room temperature. The high-tensile strength of the resin exhibits a semi-flexible property and good adhesion property after curing. It is ideal for electrical applications that need good handling and performance characteristics. High dielectric strength offers a very good electrical insulating property to the resin. The resin allows you to insulate conductors of multi-core splices operating at 1 kV or less. It is used in 72-N, 85 Series kits. ASTM Approved and RoHS 2011/65/EU Compliant‎.

  • 70 Shore A hardness
  • Has 18-minute gel time at 73 degrees F (23 degrees C)
  • Useful for replacing or repairing the jacket on both single- and multi-core power cables
  • Comes in dark green color
  • 3.46-oz capacity size A bag
  • Withstands a temperature range of 32 to 194 degrees F (0 to 90 degrees C)
  • Elongates 98% longer than its original size for easy insulation or wrapping
  • Withstands a voltage rating of 1 kV or less
  • ASTM Approved and RoHS 2011/65/EU Compliant‎
  • 10 containers/case

Specifications

  • 3M ID: 80610073654
  • Cable Accessory Products: Electrical Resins
  • Color: Green
  • Container Size: bag size A - 3.46 oz
  • Dielectric Strength: 524 Millivolt
  • Dielectric Strength (V/mil): 524 V/mil
  • Elongation: 98 %
  • Gel Time: 18 Minutes at 73(deg)F (23(deg)C), 18 Minutes at 73°F (23°C)
  • Hardness: 70 Shore A
  • Material: Polyurethane
  • Maximum Operating Temperature: 130 Degree Celsius
  • National Stock Number: 5970000067723, 5970000549045
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Temperature Rating: Class B
  • Tensile Strength: 444 Pound-Force Per Square Inch
  • Trademark: Scotchcast

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400731189
GTiN 00054007311898
Color Green
Material Polyurethane
Family Brand Name 3M
Sub Brand Scotchcast
Max Operating Temperature 130 C
