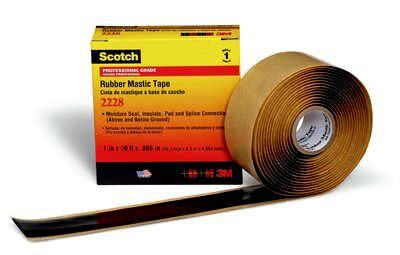

3M 2228-2x3FT Rubber Mastic Tape
Product image thumbnail 0
Product image thumbnail 1
$8.70/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 2228-2x3FT
Irby Part # 3552397

Features

  • Is a UL recognized component for applications up to 130°C (266°F)
  • Primary electrical insulation for cable and wire connections and vibration padding for motor leads rated up to 1000 volts
  • Scotch® Rubber Mastic Tape 2228 is a 65-mil thick, premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape.
  • Scotch® Rubber Mastic Tape 2228 consisting of an ethylene propylene rubber (EPR) backing coated with an aggressive, temperature-stable mastic adhesive on a liner. Designed for electrical insulating and moisture sealing, intended for both indoor and weather exposed outdoor applications including resistance to UV exposure.
  • Thick construction allows quick application build–up and padding over irregular connections
  • Applicable over a temperature range of 32 to 100°F (0 to 38°C) without loss of physical properties
  • RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611200777
  • Manufacturing Origin: USA
  • Adhesion to Steel: 15.0 lb/in (26.2 N/10 mm)
  • Application: Insulating || Sealing
  • Brand: Scotch®
  • Breaking Strength (Imperial): 150 psi
  • Color Family: Black
  • Dielectric Strength (V/mil): 500 V/mil
  • Maximum Operating Temperature (Celsius): 130 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 266 Degree Fahrenheit
  • Overall Length (Imperial): 3 ft
  • Overall Length (Metric): 0.91 m
  • Overall Width (Imperial): 2 in
  • Overall Width (Metric): 50.8 mm
  • Product Color: Black

Overview

UPC 05400743478
GTiN 00054007434788
Family Brand Name Scotch
Length 3 LF
Width 2 in
Color Black
Thickness 1.65 mm
Material Mastic With EPR Backing
Product Type Mastic Tape
Max Operating Temperature 266 degrees F
Overall Length 3 ft
