3M 2273M-ID/UU5W-RT 2273M-ID/UU5W/R

Features

• Four active trace frequencies which can be used individually or simultaneously to compensate for varying field conditions. The receiver incorporates passive power and auxiliary frequencies that do not require the use of the transmitter.
• Graphic display to distinguish between targeted cable and other cables in congested area.

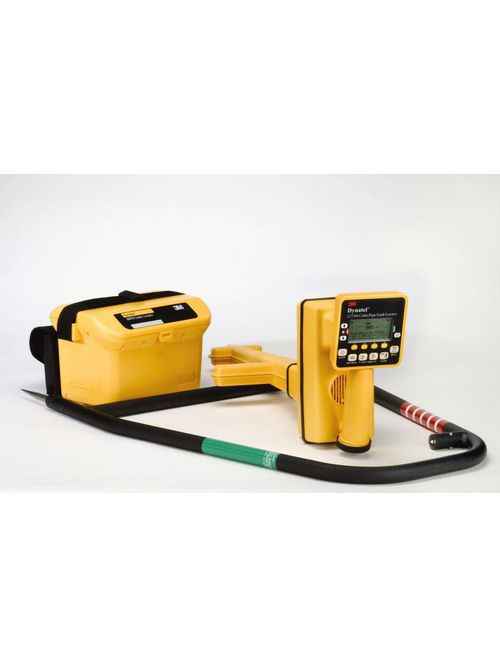

• The 3M™ Dynatel™ Locator 2250M iD is designed to find the path and estimated depth of buried cables and pipes, and detect EMS Markers
• Accurate multi-antenna design for various user-selected locating modes—Directional Peak, Multi-Directional Null, plus a single antenna Special Peak mode for deep depths.
• Directional mode utilizes all-peak antenna design for improved left/right guidance and accurate locates in challenging conditions.
• Compatibility with select GPS/GIS field mapping instruments for real time mapping of electronic markers or pipe and cable facilities
• Locate, write and read information into the 3M™ iD Electronic Marker System.

Suggested Applications

• Gas Industry
• Power Industry
• Fault Finding
• Read, Write and Locate Markers

Specifications

• 3M ID: 80611140916
• Brand: Dynatel™
• Cable/Pipe Locate: Yes
• Carrying Bag Included: No
• Clip Size: Large Clips
• Compatible Series: Dynatel 2200M
• Coupler Size: 3.00 Inch
• Direct Connect Cable: Large Clips
• Family: 2273M Series
• Fault Finding Capability: Yes
• Locator Function: Cable || Fault || Marker || Pipe
• Locator Type: Fault and Marker
• Marker Finding Capability: No
• Minimum Order Quantity: 1
• Net Weight (Imperial): 4.85 lb
• Number of Frequencies: 5
• Operating Temperature Range (Celsius): -20 °C to 50 °C
• Product Type: Utility Locator
• Solution for: Access Network: FTTH/FTTB/CATV || Access Network: xDSL || Long-haul/Metro Loop Network: Outdoor || Wireless Network: Backhaul
• Storage Temperature: -20 to 70 Degree Celsius
• Transmitter Output: 5 W
• Weight (Imperial): 23.32 lb
