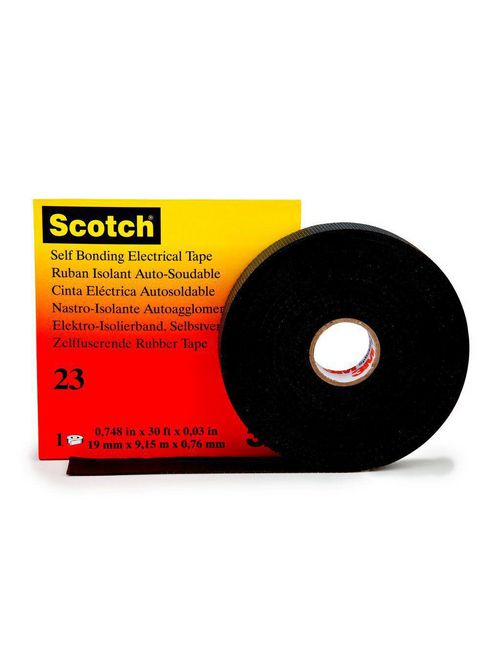

3M Electrical 23-2"x30FT Black Ethylene Propylene Rubber Splicing Tape
Product image thumbnail 0
Product image thumbnail 1
$42.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 23-2X30FT
Irby Part # 36250

Features

  • Self-fusing, ethylene propylene rubber backing and highly conformable, rubber-resin adhesive
  • Temperature rated for continuous adhesion to 194°F (90°C)
  • Special polyester liner keeps tape protected and clean during application
  • ASTM Approved & RoHS 2002/65/EC Compliant

Specifications

  • Adhesion to Steel: en-CA: N/A - en-US: N/A - fr-CA: N/A
  • Adhesive Material: Rubber Resin
  • Adhesive Type: Rubber
  • Application: Insulation - Electrical Maintenance
  • Backing Material: Ethylene Propylene Rubber
  • Backing Thickness (Metric): 0.76 mm
  • Breaking Strength (Imperial): 8 lb/in
  • Color Family: Black
  • Dielectric Strength: 800 V/mil
  • Elongation at Break: 1000%
  • Family: Scotch® Rubber Splicing Tape 23
  • High Temperature Rating: 194°F (90°C)
  • Insulated: Yes
  • Insulation Resistance: > 10^6 megohms
  • Liner/Linerless: Liner
  • Material: EPR with Liner
  • Maximum Operating Temperature (Celsius): 90 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
  • Minimum Operating Temperature (Celsius): 0 Degree Celsius
  • Operating Temperature (Celsius): Up to 90 °C
  • Operating Temperature (Fahrenheit): Up to 194 °F
  • Overall Length (Imperial): 30 ft
  • Overall Length (Metric): 9.1 m
  • Overall Width (Imperial): 2 in
  • Overall Width (Metric): 50.8 mm
  • Product Color: Black
  • Product Markets: Electrical Construction - Power Distribution - Electrical MRO
  • Product Type: Rubber and Splicing Tapes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Rolls per Carton: 1
  • Rolls per Case: 16
  • Self-extinguishing: No
  • Self-sticking: Yes
  • Shelf Life: 5 Year
  • Specifications Met: ASTM D-4388 Type 1, 2 & 3
  • Suitable for High Voltage: Yes
  • Tape Color: Black
  • Tape Grade: Premium
  • Tape Length (Metric): 9.1 m
  • Tape Type: Professional Grade Rubber Tape
  • Tape Width (Imperial): 2 in
  • Tape Width (Metric): 50.8 mm
  • Temperature Protected Till: 130 Degree Celsius
  • Tensile Strength (Imperial): 8 Pound-Force Per Square Inch
  • Tensile Strength (Metric): 55 kPa
  • Total Tape Thickness without Liner (Imperial): 30 mil
  • Total Tape Thickness without Liner (Metric): 0.76 mm
  • Total Thickness: 0.76 mm
  • UV Resistant: No
  • Voltage: 69 kV
  • Voltage Application: All voltage classes
  • Voltage Rating: 69 kV
  • Vulcanizing: No

Overview

UPC 05400715033
Family Brand Name Scotch
Item Long Description Scotch Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 F (90 C).
GTiN 00054007150336
Length 30 ft
Width 2 in
Size 2 in x 30 ft
Color Black
Type Insulating and Splicing
Thickness 30 Milli-inch (mil)
Backing Material Polyester lining
Max Operating Temperature 194 degrees F
Overall Length 30 ft
Tensile Strength 8 Pound-Force Per Square Inch
Sub Brand Scotch
Applications Electrical Maintenance,Insulation
Adhesive Type Rubber
