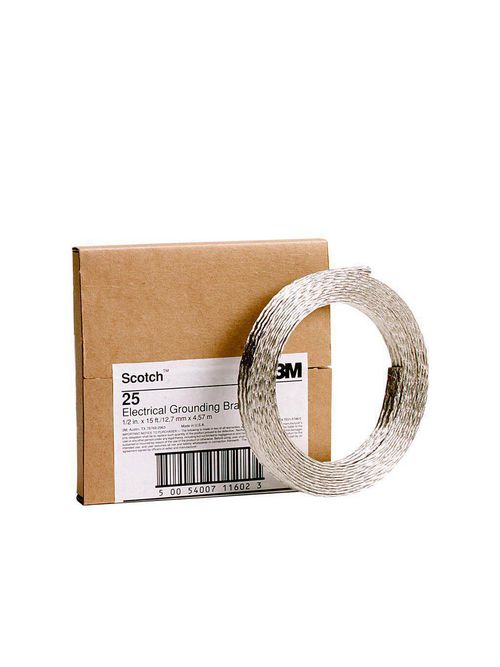

3M 25-1/2 Inch x 15 Foot Grounding Braid
Product image thumbnail 0
Product image thumbnail 1
$103.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 25
Irby Part # 22701

Features

  • 240 strands of #30 AWG is the approximate equivelant to #6 AWG wire
  • Ideal for grounding shiled power cable and cable accessories
  • Soderable and compatiable with cable oils, common solvents, adhesives and corrosion resistand
  • Made of copper
  • RoHS 2011/65/EU Compliant

Specifications

  • Application: For Shielding and Bonding
  • Backing Material: Tinned Copper wires
  • Backing Thickness (Metric): 2.38 mm
  • Color Family: Gray
  • Compatible With: All Copper Closures - All Fiber Closures
  • Dielectric Strength (V/mil): Conductive
  • Family: Scotch® Electrical Grounding Braid 25
  • High Temperature Rating: 266°F (130°C)
  • Indoor/Outdoor: Outdoor
  • Insulation: No
  • Low Temperature Rating: 32°F (0°C)
  • Material: All-Metal Woven Grounding Braid
  • Maximum Conductor Size: Non Pertinent
  • Minimum Conductor Size: 0 NP
  • Operating Temperature Range (Celsius): 0 °C to 130 °C
  • Operating Temperature Range (Fahrenheit): 32 °F to 266 °F
  • Overall Length (Imperial): 15 ft
  • Overall Length (Metric): 4.5 m
  • Overall Width (Imperial): 0.5 in
  • Overall Width (Metric): 12.7 mm
  • Product Color: Silver
  • Product Markets: Electrical MRO - Power Distribution - Electrical Construction
  • Product Type: Grounding Braid
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Self-extinguishing: No
  • Self-sticking: No
  • Suitable for High Voltage: No
  • Tape Grade: Premium
  • Tape Type: Grounding Braid
  • Total Thickness: 2.38 mm
  • UV Resistant: Yes
  • Vulcanizing: No

Overview

UPC 05400711602
Item Long Description Scotch Electrical Grounding Braid 25 is an all woven grounding braid in a flat cable like form. This braid is ideal for grounding and power cable shielding applications.
GTiN 00054007116028
Length 15 ft
Size 0.5 Inch
Type Insulating and Splicing
Material All-Metal Woven Grounding Braid
Product Type Crown
Family Brand Name Scotch
Sub Brand Scotch
Width 0.5 in
Color Silver
Overall Length 15 ft
Applications For Shielding And Bonding
Operating Temperature 0 To 130 C
Thickness 2.38 mm
Backing Material Tinned Copper Wires
Country of Origin USA
Indoor Outdoor Outdoor
