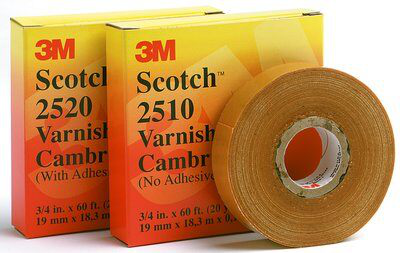

3M 2510-2x36yd Varnished Cambric Tape
Product image thumbnail 0
Product image thumbnail 1
$100.00/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 2510-2x36yd
Irby Part # 22698

Features

  • Straight cut woven cotton cambric fabric is infused with yellow varnish for electrical insulation
  • Provides excellent tensile strength
  • Withstands a temperature range of 32 to 221 °F (0 to 105 °C)
  • ASTM Approved and RoHS 2011/65/EU Compliant

Specifications

  • Adhesive Material: Non-adhesive
  • Adhesive Type: Non-adhesive
  • Application: Electrical Maintenance
  • Application/Industry: Utility - Industrial Construction - Wind Power - Irrigation - Solar - Appliance and Fixture - Maintenance and Repair Operations - Mining - Commercial Construction
  • Backing Material: Cotton Cloth
  • Breaking Strength (Imperial): 50 lb/in
  • Chemical Resistant: Yes
  • Color Family: Yellow
  • Dielectric Strength: 800 V/mil
  • Dielectric Strength (V/mil): 800 V/mil
  • Family: Scotch® Varnished Cambric Tape 2510
  • High Temperature Rating: 220°F (105°C)
  • Material: Varnish Cambric Fabric
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 220 Degree Fahrenheit
  • Minimum Order Quantity: 10 Rolls
  • Operating Temperature (Celsius): Up to 105 Degree Celsius
  • Operating Temperature (Fahrenheit): Up to 220 °F
  • Operating Temperature Range (Celsius): 0 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): 32 °F to 220 °F
  • Overall Length (Imperial): 36 yd
  • Overall Length (Metric): 32.9 m
  • Overall Thickness (Metric): 0.18 mm
  • Overall Width (Imperial): 2 in
  • Overall Width (Metric): 50.8 mm
  • Product Color: Yellow
  • Product Markets: Electrical MRO - Power Distribution - Electrical Construction
  • Product Type: Rubber and Splicing Tapes - Varnished Cambric Tape
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Rolls per Carton: 1
  • Rolls per Case: 16
  • Self-sticking: No
  • Shelf Life: 5 Year
  • Specifications: ASTM D-374 - ASTM D-1000 - ASTM D-295
  • Tape Grade: Premium
  • Tape Type: Varnished Cambric
  • Temperature Protected Till: 80 Degree Celsius
  • Tensile Strength (Imperial): 7150 psi
  • Tensile Strength (Metric): 876 N/100mm
  • Total Tape Thickness without Liner (Imperial): 12 mil
  • Total Tape Thickness without Liner (Metric): 0.177 mm
  • Vulcanizing: No

Overview

UPC 05400710711
Item Long Description Scotch Tape 2510 is a 7 mil thick, premium grade varnished cambric tape that's suitable for insulating bus bars, motor leads and service drop connections. The electrical properties of the tape remain stable in a temperature range of 32 to 221 F (0 to 105 C).
GTiN 00054007107118
Width 2 in
Size 2x36yd
Color Yellow
Thickness 0.18 mm
Applications Electrical Maintenance
Family Brand Name Scotch
Tensile Strength 20 lbs./in
Sub Brand Scotch
Length 36 LY
Material Varnish Cambric Fabric
Product Type Rubber And Splicing Tapes, Varnished Cambric Tape
Max Operating Temperature 220 degrees F
Overall Length 36 yd
