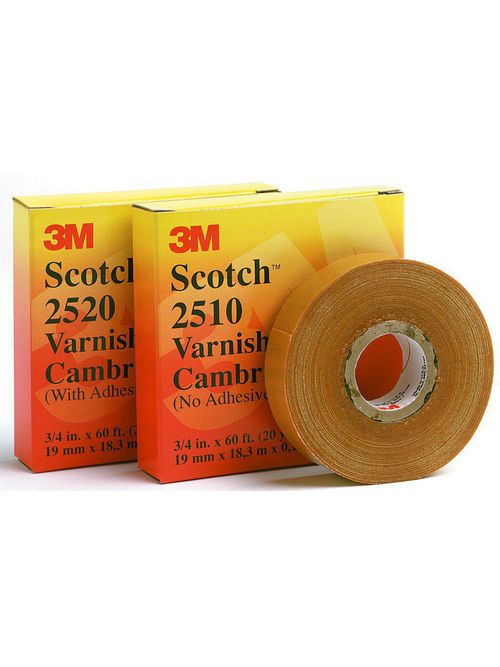

3M 2510-3/4x60ft Varnished Cambric Tape

Features

• Straight cut woven cotton cambric fabric is infused with yellow varnish for electrical insulation
• Provides excellent tensile strength
• Withstands a temperature range of 32 to 221 °F (0 to 105 °C)
• ASTM Approved and RoHS 2011/65/EU Compliant

Specifications

• Adhesive Material: Non-adhesive
• Adhesive Type: Non-adhesive
• Application: Electrical Maintenance
• Application/Industry: Mining - Maintenance and Repair Operations - Appliance and Fixture - Utility - Solar - Commercial Construction - Irrigation - Industrial Construction - Wind Power
• Backing Material: Cotton Cloth
• Breaking Strength (Imperial): 50 lb/in
• Chemical Resistant: Yes
• Color Family: Yellow
• Dielectric Strength: 800
• Dielectric Strength (V/mil): 800 V/mil
• Family: Scotch® Varnished Cambric Tape 2510
• High Temperature Rating: 220°F (105°C)
• Material: Varnish Cambric Fabric
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 220 Degree Fahrenheit
• Minimum Operating Temperature (Celsius): 0 Degree Celsius
• Minimum Order Quantity: 1 Roll
• Operating Temperature (Celsius): Up to 105 Degree Celsius
• Operating Temperature (Fahrenheit): Up to 220 °F
• Operating Temperature Range (Celsius): 0 °C to 150 °C
• Operating Temperature Range (Fahrenheit): 32 °F to 220 °F
• Overall Length (Imperial): 60 ft
• Overall Length (Metric): 18.3 m
• Overall Thickness (Metric): 0.18 mm
• Overall Width (Imperial): 0.75 in
• Overall Width (Metric): 19.05 mm
• Product Color: Yellow
• Product Markets: Electrical Construction - Power Distribution - Electrical MRO
• Product Type: Varnished Cambric Tape - Rubber and Splicing Tapes
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Rolls per Carton: 1
• Rolls per Case: 20
• Self-sticking: No
• Shelf Life: 5 Year
• Specifications: ASTM D-374 - ASTM D-295 - ASTM D-1000
• Tape Grade: Premium
• Tape Type: Varnished Cambric
• Temperature Protected Till: 130 Degree Celsius
• Tensile Strength (Imperial): 7150 psi
• Tensile Strength (Metric): 876 N/100mm
• Total Tape Thickness without Liner (Imperial): 7 mil
• Total Tape Thickness without Liner (Metric): 0.177 mm
• Vulcanizing: No
