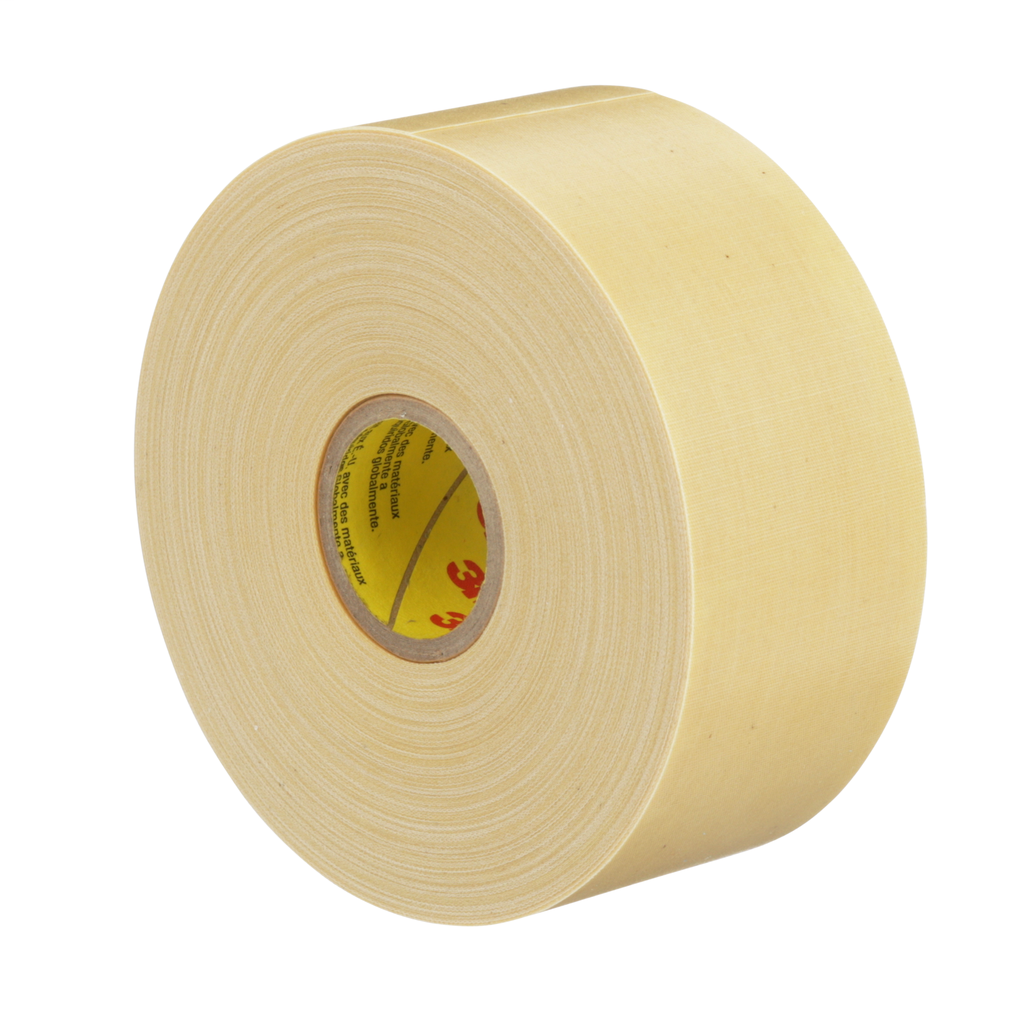

3M 2520-1.5X36YD 2520 VC-BI .008 YL
$96.00/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 2520-1.5X36YD
Irby Part # 22703

Features

  • Straight-cut, woven, cotton-cloth backing
  • Provides excellent tensile strength
  • Withstands temperatures up to 221 °F (105 °C)
  • RoHS 2011/65/EU Compliant

Specifications

  • Adhesive Material: Rubber Resin
  • Adhesive Type: Rubber Resin
  • Application: Electrical Maintenance
  • Application/Industry: Wind Power - Commercial Construction - Irrigation - Mining - Industrial Construction - Appliance and Fixture - Maintenance and Repair Operations - Utility - Solar
  • Backing Material: Cotton Cloth
  • Breaking Strength (Imperial): 50 lb/in
  • Chemical Resistant: Yes
  • Color Family: Yellow
  • Dielectric Strength: 800 V/mil
  • Dielectric Strength (V/mil): 800 V/mil
  • Family: Scotch® Varnished Cambric Tape 2520
  • High Temperature Rating: 220°F (105°C)
  • Material: Varnish Cambric Fabric
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 220 Degree Fahrenheit
  • Minimum Order Quantity: 1 Roll
  • Operating Temperature (Celsius): Up to 105 Degree Celsius
  • Operating Temperature (Fahrenheit): Up to 220 °F
  • Operating Temperature Range (Celsius): Up to 105 °C
  • Operating Temperature Range (Fahrenheit): Up to 220 °F
  • Overall Length (Imperial): 36 yd
  • Overall Length (Metric): 32.9 m
  • Overall Thickness (Metric): 0.2 mm
  • Overall Width (Imperial): 1.5 in
  • Overall Width (Metric): 38.1 mm
  • Product Color: Yellow
  • Product Markets: Power Distribution - Electrical Construction - Electrical MRO
  • Product Type: Rubber and Splicing Tapes - Varnished Cambric Tape
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Rolls per Carton: 1
  • Rolls per Case: 24
  • Self-sticking: No
  • Shelf Life: 5 Year
  • Specifications: ASTM D-295 - ASTM D-1000 - ASTM D-374
  • Tape Grade: Premium
  • Tape Type: Varnished Cambric
  • Tensile Strength (Imperial): 6250 psi
  • Tensile Strength (Metric): 876 N/100mm
  • Total Tape Thickness without Liner (Imperial): 13 mil
  • Total Tape Thickness without Liner (Metric): 0.203 mm
  • Vulcanizing: No

Overview

UPC 05400704832
Item Long Description Scotch Tape 2520 is an 8 mil thick, highly conformable, premium grade tape that's suitable for bus bars, motor leads and service drop connections. It withstands temperatures up to 221 F (105 C).
GTiN 00054007048329
Width 1.5 in
Size 1-1/2x36yd
Color Yellow
Thickness 0.2 mm
Applications Electrical Maintenance
Family Brand Name 3M
Tensile Strength 20 lbs./in
Sub Brand Scotch
Length 36 LY
Material Varnish Cambric Fabric
Product Type Rubber And Splicing Tapes, Varnished Cambric Tape
Max Operating Temperature 220 degrees F
Overall Length 36 yd
