3M 30014 30014 COPPER COMPRESSION L

Overview

The 3M Scotchlok Copper One Hole Lug 30014 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

Specifications

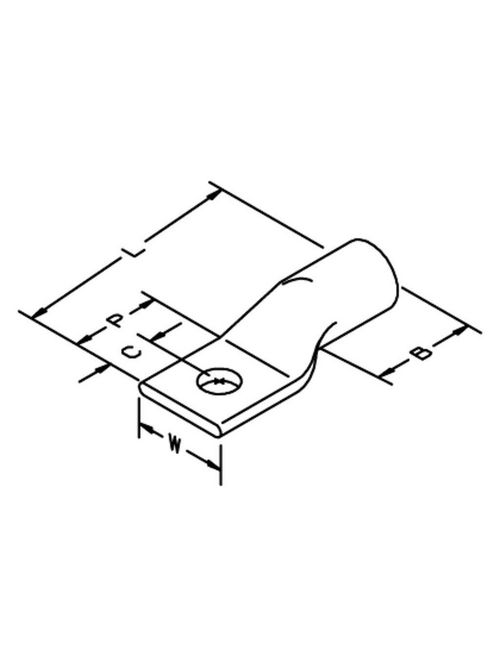

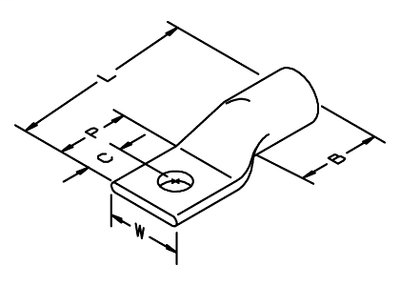

• Pad Width (metric): 11.0 mm
• Length: 1.78 Inch
• Lug Base Metal: Copper
• Pad Width: 0.43 Inch
• Maximum Installed Length: 16.00 in
• Pad Length: 0.75 Inch
• For Use With: Copper Conductor Only
• Barrel Style: Standard Barrel
• Outside Diameter: 0.29 Inch
• Connector Material: Copper
• Conductor Sizes: 6 AWG
• RoHS 2011/65/EU Compliant: Yes
• Barrel Length (metric): 21.8 mm
• Stud Sizes: #10
• Barrel Length: 0.86 Inch
• Trademark: Scotchlok
• Inside Diameter: 0.19 Inch
• Agency Approvals: UL Listed
• Length (Metric): 45.2 mm
• Center of Hole to End of Pad (metric): 9.5 mm
• Inside Diameter (metric): 5.0 mm
• Outside Diameter (metric): 7.4 mm
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Pad Length (metric): 19.1 mm
• Number of Holes: 1
• Center of Hole to End of Pad: 0.37 Inch
• Color: Blue
