3M 30015 Copper 1-Hole Lug
$2.60/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 30015
Irby Part # 22709

Overview

The 3M Scotchlok Copper One Hole Lug 30015 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

Specifications

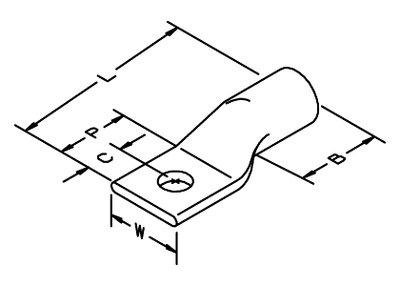

  • Length (Metric): 45.2 mm
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Center of Hole to End of Pad: 0.37 Inch
  • Barrel Length (metric): 21.8 mm
  • Pad Width (metric): 11.0 mm
  • RoHS 2011/65/EU Compliant: Yes
  • Barrel Style: Standard Barrel
  • Conductor Sizes: 6 AWG
  • Pad Width: 0.43 Inch
  • Outside Diameter (metric): 7.4 mm
  • Number of Holes: 1
  • Barrel Length: 0.86 Inch
  • Maximum Installed Length: 16.00 in
  • Connector Material: Copper
  • Pad Length (metric): 19.1 mm
  • Inside Diameter (metric): 5.0 mm
  • Lug Base Metal: Copper
  • Trademark: Scotchlok
  • Length: 1.78 Inch
  • Stud Sizes: 1/4 Inch
  • Inside Diameter: 0.19 Inch
  • Center of Hole to End of Pad (metric): 9.5 mm
  • Color: Blue
  • Pad Length: 0.75 Inch
  • Outside Diameter: 0.29 Inch
  • For Use With: Copper Conductor Only

Documents

Overview

UPC 05400712428
GTiN 00054007124283
Length 1.78 in
Color Blue
Applications Copper Conductor Only
Capacity 1
Family Brand Name 3M
Sub Brand Scotchlok
Barrel Type Standard Barrel
Stud Size 1/4 in
Conductor Size 6 AWG
Barrel Length 0.86 in
Inside Diameter 0.19 in
