3M 30019 30019 COPPER COMPRESSION L
$3.30/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 30019
Irby Part # 3663458

Overview

The 3M Scotchlok Copper One Hole Lug 30019 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

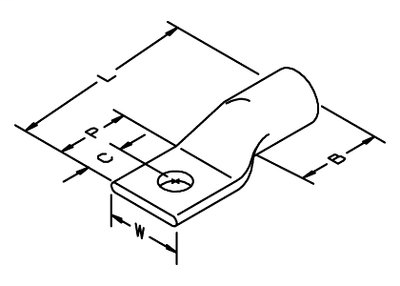

Specifications

  • Color: Gray
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Outside Diameter (metric): 8.6 mm
  • Center of Hole to End of Pad: 0.37 Inch
  • Pad Width: 0.48 Inch
  • Conductor Sizes: 4 AWG
  • Barrel Length: 0.75 Inch
  • Inside Diameter: 0.24 Inch
  • Inside Diameter (metric): 6.2 mm
  • RoHS 2011/65/EU Compliant: Yes
  • Center of Hole to End of Pad (metric): 9.5 mm
  • For Use With: Copper Conductor Only
  • Number of Holes: 1
  • Connector Material: Copper
  • Stud Sizes: 1/4 Inch
  • Barrel Length (metric): 19.1 mm
  • Pad Width (metric): 12.3 mm
  • Trademark: Scotchlok
  • Lug Base Metal: Copper
  • Length (Metric): 49.3 mm
  • Pad Length (metric): 22.6 mm
  • Length: 1.94 Inch
  • Outside Diameter: 0.34 Inch
  • Pad Length: 0.89 Inch
  • Barrel Style: Standard Barrel

Documents

Overview

UPC 05400712451
GTiN 00054007124511
Length 1.94 in
Applications Copper Conductor Only
Capacity 1
Family Brand Name 3M
Sub Brand Scotchlok
Color Gray
Barrel Type Standard Barrel
Stud Size 1/4 in
Conductor Size 4 AWG
Barrel Length 0.75 in
Inside Diameter 0.24 in
