3M 30022 30022 COPPER COMPRESSION L

Overview

The 3M Scotchlok Copper One Hole Lug 30022 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

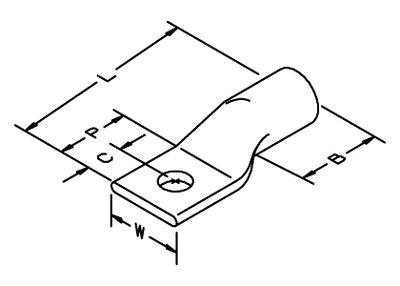

Specifications

• Inside Diameter (metric): 7.8 mm
• Connector Material: Copper
• Center of Hole to End of Pad (metric): 9.5 mm
• Lug Base Metal: Copper
• RoHS 2011/65/EU Compliant: Yes
• Center of Hole to End of Pad: 0.37 Inch
• Barrel Length (metric): 20.7 mm
• Outside Diameter: 0.41 Inch
• Pad Length (metric): 22.6 mm
• Barrel Style: Standard Barrel
• Pad Width: 0.63 Inch
• Inside Diameter: 0.3 Inch
• Number of Holes: 1
• Outside Diameter (metric): 10.5 mm
• Trademark: Scotchlok
• Length: 1.97 Inch
• Pad Length: 0.89 Inch
• Conductor Sizes: 2 AWG
• Barrel Length: 0.81 Inch
• Pad Width (metric): 15.9 mm
• For Use With: Copper Conductor Only
• Stud Sizes: 1/4 Inch
• Length (Metric): 50 mm
• Color: Brown
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
