3M 30024 30024 COPPER COMPRESSION L
$4.40/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 30024
Irby Part # 3637282

Overview

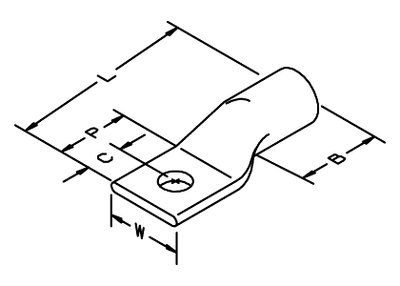

The 3M Scotchlok Copper One Hole Lug 30024 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

Specifications

  • Outside Diameter (metric): 10.5 mm
  • Pad Length: 0.89 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • Inside Diameter: 0.3 Inch
  • Number of Holes: 1
  • Barrel Length (metric): 20.7 mm
  • Trademark: Scotchlok
  • Length (Metric): 50 mm
  • Pad Width (metric): 15.9 mm
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Center of Hole to End of Pad (metric): 9.5 mm
  • Pad Length (metric): 22.6 mm
  • Length: 1.97 Inch
  • Lug Base Metal: Copper
  • Stud Sizes: 3/8 Inch
  • Barrel Length: 0.81 Inch
  • Pad Width: 0.63 Inch
  • Barrel Style: Standard Barrel
  • Inside Diameter (metric): 7.8 mm
  • For Use With: Copper Conductor Only
  • Agency Approvals: UL Listed
  • Connector Material: Copper
  • Conductor Sizes: 2 AWG
  • Center of Hole to End of Pad: 0.37 Inch
  • Color: Brown
  • Outside Diameter: 0.41 Inch

Documents

Overview

UPC 05400712493
GTiN 00054007124931
Length 1.97 in
Color Brown
Applications Copper Conductor Only
Capacity 1
Family Brand Name 3M
Sub Brand Scotchlok
Barrel Type Standard Barrel
Stud Size 3/8 in
Conductor Size 2 AWG
Barrel Length 0.81 in
Inside Diameter 0.3 in
