3M 30045 Copper 1-Hole Lug
$9.10/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 30045
Irby Part # 22718

Overview

The 3M Scotchlok Copper One Hole Lug 30045 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

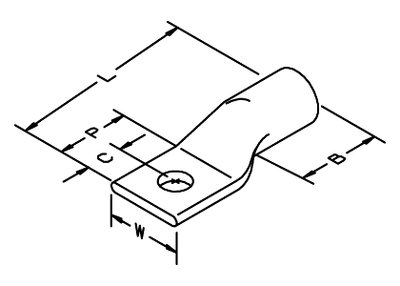

Specifications

  • Outside Diameter: 0.68 Inch
  • Inside Diameter (metric): 13.9 mm
  • Pad Width: 1 Inch
  • Agency Approvals: UL Listed
  • Pad Width (metric): 25.4 mm
  • Number of Holes: 1
  • Barrel Length: 0.97 Inch
  • Center of Hole to End of Pad: 0.53 Inch
  • Conductor Sizes: 4/0 AWG
  • Barrel Style: Standard Barrel
  • Inside Diameter: 0.54 Inch
  • Pad Length (metric): 28.2 mm
  • Pad Length: 1.11 Inch
  • Barrel Length (metric): 24.6 mm
  • Stud Sizes: 1/2 Inch
  • Center of Hole to End of Pad (metric): 13.4 mm
  • RoHS 2011/65/EU Compliant: Yes
  • Length: 2.6 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Length (Metric): 65.9 mm
  • Outside Diameter (metric): 17.4 mm
  • Lug Base Metal: Copper
  • Connector Material: Copper
  • Color: Purple
  • For Use With: Copper Conductor Only
  • Trademark: Scotchlok

Documents

Overview

UPC 05400712584
GTiN 00054007125846
Length 2.6 in
Color Purple
Applications Copper Conductor Only
Capacity 1
Family Brand Name 3M
Sub Brand Scotchlok
Barrel Type Standard Barrel
Stud Size 1/2 in
Conductor Size 4/0 AWG
Barrel Length 0.97 in
Inside Diameter 0.54 in
