3M 31056 31056 COPPER COMPRESSION L
Product image thumbnail 0
Product image thumbnail 1
$11.40/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 31056
Irby Part # 3616198

Features

  • Long barrel ensures a secure fit and offers reliable performance
  • Barrel has colored stripes that help to indicate the wire range
  • Suitable for indoor and outdoor applications
  • Made of copper for good conductivity and tin plating for corrosion resistance
  • Rated for 35 kV applications
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

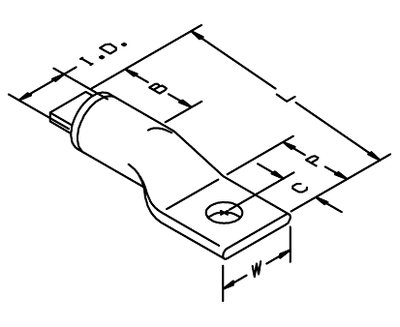

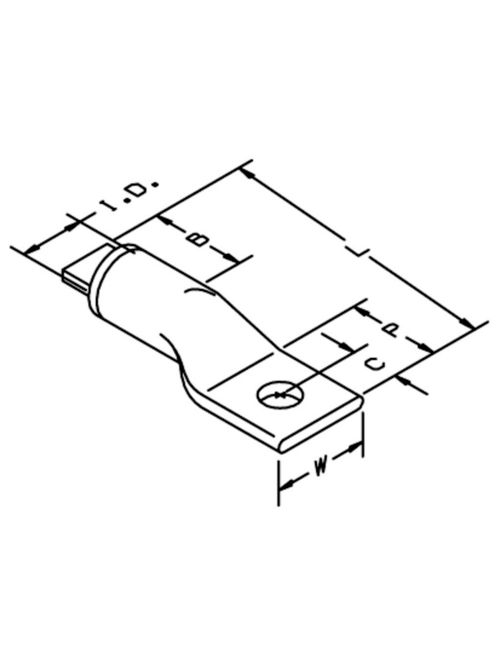

Specifications

  • Barrel Length (Imperial): 1.94 in
  • Barrel Length (Metric): 49.2 mm
  • Barrel Style: Long Barrel
  • Center of Hole to Center of Hole: 0.531 Inch
  • Center of Hole to End of Pad: 0.53 Inch
  • Center of Hole to End of Pad (Metric): 13.4 mm
  • Color Family: Red
  • Conductor Size: 350 kcmil
  • Connector Description: One Hole
  • For Use With: Copper Conductor Only
  • Inside Diameter (Metric): 17.8 mm
  • Lug Type: Compression Lugs
  • Material: Copper
  • Maximum Conductor Size: 350 kcmil
  • Maximum Operating Voltage: 35 Kilovolt
  • Number of Stud Holes: 1
  • Outer Diameter (Imperial): 0.88 in
  • Outside Diameter (Metric): 22.4 mm
  • Overall Length (Imperial): 3.85 in
  • Overall Length (Metric): 97.6 mm
  • Pad Length (Imperial): 1.11 in
  • Pad Length (Metric): 28.2 mm
  • Product Color: Red
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Sizes: 1/2 Inch

Overview

UPC 05400712659
GTiN 00054007126591
Length 3.85 in
Color Red
Applications Copper Conductor Only
Capacity 1
Family Brand Name Scotchlok
Sub Brand Scotchlok
Barrel Type Long Barrel
Stud Size 1/2 in
Conductor Size 350 MCM
Barrel Length 1.94 in
Inside Diameter 0.7 in
Material Copper
Overall Length 3.85 in
