3M 31145 Copper 2-Hole Long Barrel Lug
$11.40/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 31145
Irby Part # 22721

Overview

The 3M Scotchlok Copper Two Hole Long Barrel Lug 31145 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

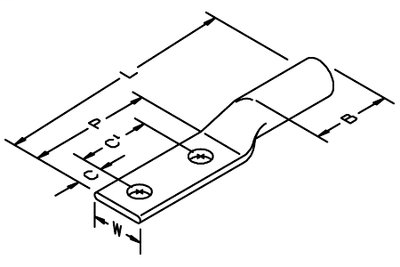

Specifications

  • Length: 5.16 Inch
  • Pad Width (metric): 25.4 mm
  • RoHS 2011/65/EU Compliant: Yes
  • Stud Sizes: 1/2 Inch
  • Barrel Length (metric): 39.7 mm
  • Center of Hole to Center of Hole (metric): 44.5 mm
  • Number of Holes: 2
  • Barrel Style: Long Barrel
  • Pad Width: 1 Inch
  • Inside Diameter: 0.54 Inch
  • Inside Diameter (metric): 13.9 mm
  • Barrel Length: 1.56 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Length (Metric): 131.1 mm
  • Lug Base Metal: Copper
  • Center of Hole to End of Pad (metric): 16.0 mm
  • Center of Hole to End of Pad: 0.63 Inch
  • Outside Diameter (metric): 17.4 mm
  • Trademark: Scotchlok
  • Pad Length: 3 Inch
  • Conductor Sizes: 4/0 AWG
  • Color: Purple
  • Pad Length (metric): 76.2 mm
  • For Use With: Copper Conductor Only
  • Outside Diameter: 0.68 Inch
  • Center of Hole to Center of Hole: 1.75 Inch

Documents

Overview

UPC 05400712600
GTiN 00054007126003
Length 5.16 in
Color Purple
Barrel Type Long Barrel
Stud Size 1/2 in
Conductor Size 4/0 AWG
Applications Copper Conductor Only
Capacity 2
Family Brand Name 3M
Barrel Length 1.56 in
Inside Diameter 0.54 in
Sub Brand Scotchlok
