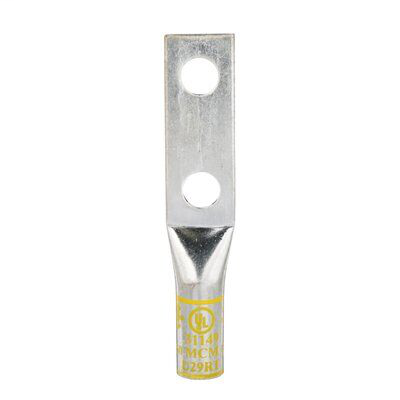

3M 31149 Copper 2-Hole Long Barrel Lug

Features

• Long barrel ensures a secure fit and offers reliable performance
• 3M™ Scotchlok™ 31100 2 Hole Compression Lug is for use with copper conductors only. The seamless copper construction offers high conductivity and a tin plated finish resists corrosion. It is rated for 35 kV voltage applications.
• Barrel has colored stripes that help to indicate the wire range
• Suitable for indoor and outdoor applications
• Made of copper for good conductivity and tin plating for corrosion resistance
• For up to 35 kV applications
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Specifications

• 3M ID: 80610033450
• Barrel Length (Imperial): 1.56 in
• Barrel Length (Metric): 39.7 mm
• Barrel Style: Long Barrel
• Brand: Scotchlok™
• Case Quantity: 10
• Center of Hole to Center of Hole: 1.75 Inch
• Center of Hole to Center of Hole (Metric): 44.5 mm
• Center of Hole to End of Pad: 0.63 Inch
• Center of Hole to End of Pad (Metric): 16.0 mm
• Color Family: Yellow
• Conductor Size: 250 kcmil
• Connector Description: Two hole
• For Use With: Copper Conductor Only
• Inside Diameter (Imperial): 0.59 in
• Inside Diameter (Metric): 15.1 mm
• Lug Type: Compression Lugs
• Manufacturing Origin: Chile
• Material: Copper
• Maximum Operating Voltage: 35 Kilovolt
• Number of Stud Holes: 2
• Outer Diameter (Imperial): 0.75 in
• Outside Diameter (Metric): 19.1 mm
• Overall Length (Imperial): 5.31 in
• Overall Length (Metric): 134.9 mm
• Pad Length (Imperial): 3 in
• Pad Width: 1.13 in
• Pad Width (Metric): 28.6 mm
• Product Color: Yellow
• Stud Sizes: 1/2 Inch
