3M 31172 Copper 2-Hole Long Barrel Lug
$50.50/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 31172
Irby Part # 2380106

Overview

The 3M Scotchlok Copper Two Hole Long Barrel Lug 31172 is used on copper conductors only. It is constructed of one-piece, seamless, high-conductivity copper.

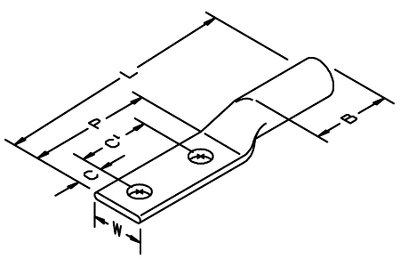

Specifications

  • Conductor Sizes: 750 kcmil
  • Number of Holes: 2
  • Center of Hole to End of Pad: 0.63 Inch
  • Barrel Length: 2.81 Inch
  • Lug Base Metal: Copper
  • Outside Diameter (metric): 33 mm
  • Center of Hole to End of Pad (metric): 16.0 mm
  • Inside Diameter (metric): 26.2 mm
  • Barrel Style: Long Barrel
  • Center of Hole to Center of Hole (metric): 44.5 mm
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Trademark: Scotchlok
  • Pad Length: 3 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • Barrel Length (metric): 71.5 mm
  • Pad Length (metric): 76.2 mm
  • For Use With: Copper Conductor Only
  • Outside Diameter: 1.29 Inch
  • Pad Width: 1.72 Inch
  • Length: 7 Inch
  • Pad Width (metric): 43.7 mm
  • Stud Sizes: 1/2 Inch
  • Length (Metric): 177.8 mm
  • Color: Black
  • Inside Diameter: 1.03 Inch
  • Center of Hole to Center of Hole: 1.75 Inch

Documents

Overview

UPC 05400712709
GTiN 00054007127093
Length 7 in
Color Black
Barrel Type Long Barrel
Stud Size 1/2 in
Conductor Size 750 MCM
Applications Copper Conductor Only
Capacity 2
Family Brand Name 3M
Barrel Length 2.81 in
Inside Diameter 1.03 in
Sub Brand Scotchlok
