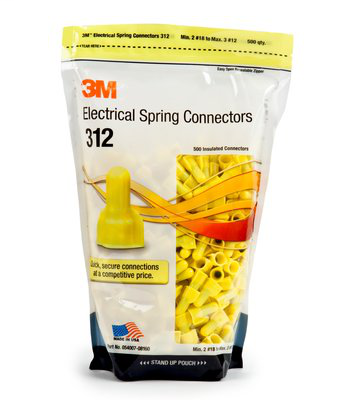

3M 312-BAG 500/Bag Yellow Spring Connector
$0.09/ea
EA
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 312-BAG
Irby Part # 22725

Overview

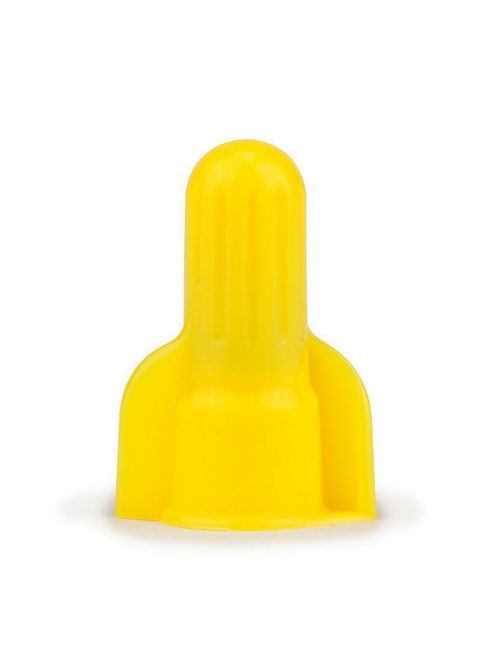

3M™ Electrical Spring Connector 312 is used to connect 2 or more copper conductors in a pigtail application. Its nylon construction provides a flame-retardant property to the connector, making it ideal for use in applications that require safety. The spring design allows them to spin on quickly and tighten down easily.

3M™ Electrical Spring Connector 312 delivers uniform holding power for reliable electrical connections. Wings enable easy, high torque installation. The spring inside the connector has a durable steel construction with a corrosion-resistant coating. It offers enough space to accommodate a wide range of solid or stranded copper wires. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Used for connecting and insulating wires in a pigtail application
  • Twist-on type for quick connection
  • Used for appliances and fixtures, automotive and marine, commercial construction, industrial construction and residential construction
  • Delivers uniform holding power
  • Accommodates a range of 22 to 10 AWG copper conductors
  • Yellow flame-retardant nylon construction
  • Withstands temperatures up to 221 degrees F (105 degrees C)
  • 300V- or 600V-rated depending on wire combination for copper conductors and 1000V-rated for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 500/bag

Specifications

  • 3M ID: 80610145247
  • Agency Approvals: UL, IEC, and CSA
  • Boxes per Case: 20
  • Brand: 3M
  • Color: Yellow
  • Conductor Sizes: 22 - 8 AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Family: 3M™ Electrical Spring Connector
  • Flame Retardant: RoHS 2011/65/EU Compliant
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 8 AWG
  • Minimum Wire Gauge: 22 AWG
  • Packaging: Bag
  • Product Family: 3M™ Electrical Spring Connector
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Trademark: 3M

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400708160
GTiN 00054007081609
Size 22 - 8 AWG
Color Yellow
Temperature Rating 221 F
Family Brand Name 3M
Tc Connection Wire
Product Type Connector
Conductor Size 22-8 AWG
Connection Type Wire
Max Operating Temperature 221 degrees F
