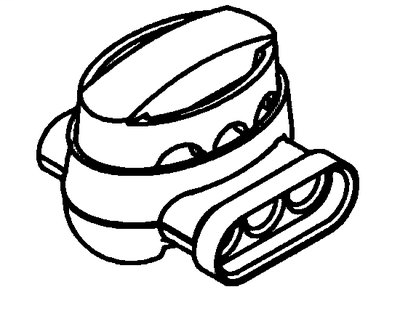

3M 314U-BIN 1000/Box Insulation Displacement Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$0.30/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 314U-BIN
Irby Part # 3764873

Features

  • White cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
  • Accommodates a wire range of 1,5 - 2,5 mm2 solid or stranded

Specifications

  • Color Family: White
  • Conductor Size: 22 - 14 AWG
  • Conductor Sizes: 22 - 14 AWG
  • Connection Type: Pigtail
  • Connector Style: Insulation Displacement
  • CSA File Number: LR15503
  • Family: IDC for Electrical Applications
  • Flame Retardant: Yes
  • Grease Filling Against Corrosion: No
  • Insulation Color: cap blue, body white
  • Insulation Material: Nylon
  • Insulation Outer Diameter (Imperial): 0.155 in
  • Interrupt Free Shifting: No
  • Material: Flame Retardant Nylon
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Operating Temperature (Celsius): 0 NP
  • Minimum Operating Temperature (Fahrenheit): 0 NP
  • Minimum Wire Gauge: 22 AWG
  • Package Quantity: 1000
  • Product Color: White
  • Product Type: Connector
  • Recommended Crimping Tool: E-9BM and/or Mechanics (slip joint) Pliers
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • UL File Number: E23438
  • Voltage Application: Low Voltage
  • Water-resistant: No
  • Wire Connector Type: IDC Connectors
  • Wire Gauge: 22 to 14 AWG

Overview

UPC 05400709233
GTiN 00054007092339
Color White
Wire Size 22-14 AWG
Temperature Rating 221 F
Family Brand Name Scotchlok
Sub Brand Scotchlok
Voltage 600 Volt
Conductor Size 22 To 14 AWG
Connection Type Pigtail
Flame Retardant Yes
Material Nylon
Max Operating Temperature 221 degrees F
