3M 33+Super-3/4x36YD Boxed Vinyl Tape

Overview

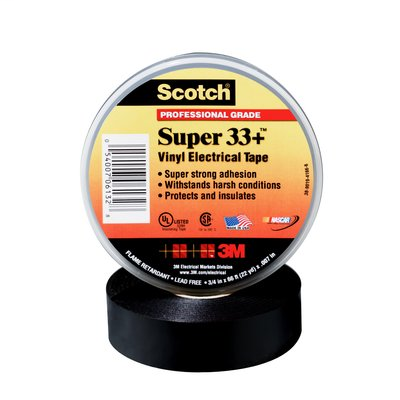

Scotch Super 33+ Electrical Tape a black, 7 mil tape, on a 1 inch core, combines the flexibility of a PVC backing with excellent electrical insulating properties to provide primary electrical insulation for splices up to 600V. Abrasion-, corrosion-, and UV-resistant, it makes an excellent protective jacketing for high-voltage cables and wire harnessing. UL Listed and CSA Certified, it resists alkalis and acids, and is flame-retardant. Excellent all-weather performance in cold to 0(deg)F (-18(deg)C) or hot to 220(deg)F (105(deg)C).

Specifications

• Material: PVC
• Color: Black
• Backing Material: Polyvinyl Chloride
• Tape Color: Black
• Dielectric Strength: 1150 V/mil
• Family: Scotch Super 33+ Vinyl Electrical Tape
• Product Type: Vinyl Tape
• Dielectric Strength (V/mil): 1150 V/mil
• Operating Temperature Range (Celsius): -18 to 105 Degree Celsius
• Voltage Application: Low Voltage
• Breaking Strength: 15 lb/in
• Trademark: Scotch
• Width (Metric): 19 mm
• Length: 36 Linear Yard
• Tape Width (metric): 19 mm
• Length (Metric): 32.9 m
• Tape Type: Vinyl
• Width: 0.75 Inch
• Tape Grade: Premium
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• RoHS 2011/65/EU Compliant: Yes
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• UV Resistant: Yes
• Agency Approvals: CSA, UL Listed
• Operating Temperature (Fahrenheit): 0 to 220 Degree Fahrenheit
• Adhesive Material: Rubber Resin
• Product Family: Scotch Super 33+ Vinyl Electrical Tape
• Thickness: 7 mil
• Thickness (Metric): 0.177 mm
• Operating Temperature (Celsius): -18 to 105 Degree Celsius
