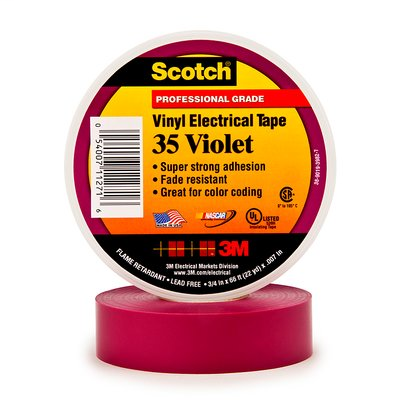

3M 35-Violet-1/2x20FT Vinyl Color Coding Tape
$2.00/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 35-VIOLET-1/2X20FT
Irby Part # 141484

Overview

Scotch Vinyl Electrical Color Coding Tape 35 is used in phase identification, color coding leads and piping systems and for marking safety areas. This tape is abrasion- and weather-resistant, with excellent mechanical and electrical insulation properti

Specifications

  • Thickness (Metric): 0.177 mm
  • Backing Material: Polyvinyl Chloride
  • Color: Violet
  • Agency Approvals: CSA, VDE 0340-TEIL1, UL Listed
  • Material: PVC
  • Length (Metric): 6.1 m
  • Voltage Application: Low Voltage
  • RoHS 2011/65/EU Compliant: Yes
  • Operating Temperature Range (Fahrenheit): 32 to 220 Degree Fahrenheit
  • Adhesive Material: Rubber Resin
  • Operating Temperature (Fahrenheit): 32 to 220 Degree Fahrenheit
  • Operating Temperature Range (Celsius): 0 to 105 Degree Celsius
  • Width: 0.5 Inch
  • Width (Metric): 12 mm
  • Thickness: 7 mil
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Trademark: Scotch
  • Dielectric Strength (V/mil): 1250 V/mil
  • Product Family: Scotch Vinyl Color Coding Electrical Tape 35
  • Operating Temperature (Celsius): 0 to 105 Degree Celsius
  • Tape Grade: Premium
  • Tape Type: Vinyl
  • Tape Width (metric): 13 mm
  • UV Resistant: No
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Family: Scotch Vinyl Color Coding Electrical Tape 35
  • Product Type: Vinyl Tape
  • Breaking Strength: 17 lb/in
  • Length: 20 Linear Foot

Documents

Overview

UPC 05400749923
GTiN 00054007499237
Length 20 LF
Width 0.5 in
Size 1/2x20FT
Color Violet
Material PVC
Applications Premium
Family Brand Name 3M
Sub Brand Scotch
Adhesive Type Rubber Resin
Operating Temperature 0 To 105 C
Thickness 7 mil
Dielectric Strength 1250 V
