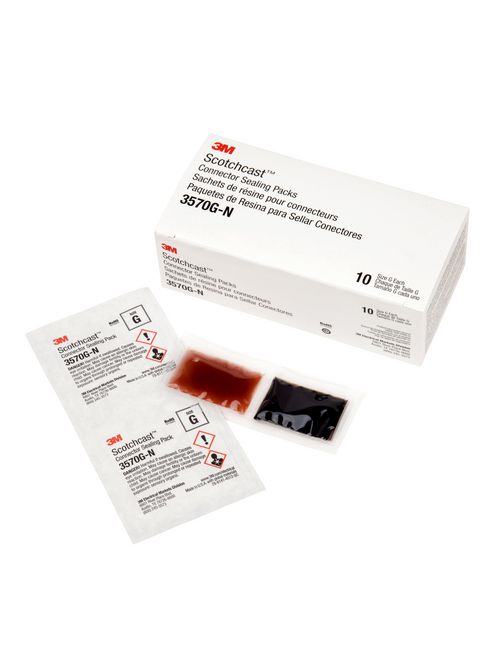

3M 3570G Connector Sealing Pack
$3.40/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 3570G-N
Irby Part # 3326459

Features

  • 60 Shore D hardness
  • 3M™ Scotchcast™ Electrical Resin 3570G N insulates and offers protection for electrical spring connectors against water, dust, soil and other environmental elements. It is a 2 part, epoxy based, liquid resin provides excellent flexibility and generates its own heat to cure. This flame retardant resin is stable in applications at elevated temperatures up to 250 °F (121 °C).
  • Has 8 to 12-minute gel time at 73 °F (23 °C)
  • Safeguards electrical spring connectors against water, dust, soil and other environmental elements
  • 3M™ Scotchcast™ Electrical Resin 3570G N provides a tough, multi purpose, moisture sealing that comes with a unique, closed mixing pouch for mixing the resin. It is a convenient insulating and encapsulating resin for electrical spring connection. The thermosetting resin does not melt or run after curing. It is suitable for potting and protecting a wide variety of electrical spring connections. This resin is rated for 0 to 600 kV voltage applications. RoHS 2011/65/EU Compliant.
  • Comes in black color
  • Includes thermo-setting resin
  • Withstands temperatures of 250 °F (121 °C)
  • Elongates 57% longer than its original size for easy insulation or wrapping
  • Insulates electrical spring connectors

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611468457
  • Application: Cable Connection
  • Brand: Scotchcast™
  • Cable Accessory Products: Electrical Resins
  • Cable Shielding: Armored || Non-Armored Shielded
  • Cable Type: EPR || Solid Dielectric Cables || XLP || XLPE
  • Color Family: Black
  • Conductor Sizes for 15 kV: 1 AWG || 1/0 AWG || 2 AWG || 2/0 AWG || 3/0 AWG || 4/0 AWG
  • Conductor Sizes for 5_8 kV: 250 kcmil || 3/0 AWG || 4/0 AWG
  • Connection Type: Wire
  • Cure Method: Room
  • Dielectric Strength (V/mil): 435 V/mil
  • Elongation: 57 %
  • Flame Retardant: Yes
  • Flexibility: Rigid
  • Form: Liquid
  • Hardness: 60 Shore D
  • Indoor/Outdoor: Both
  • Insulation Outside Diameter Range: 0.64 - 1.01 Inch
  • Insulation Outside Diameter Range (Metric): 16.3 - 25.7 mm
  • Manufacturing Origin: USA
  • Material: Epoxy
  • Maximum Wire Gauge: 95mm²
  • Minimum Wire Gauge: 35mm²
  • Number of Conductors: 3
  • Product Color: Black
  • Product Type: Accessory
  • Splice Type: Connector
  • Tensile Strength (Imperial): 1779 Pound-Force Per Square Inch
  • Typical Splice Length: 52.0 in
  • Typical Splice Length (Metric): 1320 mm
  • Voltage: 0 - 600 kV
  • Voltage Application: Medium Voltage
  • Wire Connector Type: Wire Connector Tools

Overview

UPC 05112859186
GTiN 00051128591864
Color Black
Voltage 600 kV
Splice Type Connector
Product Type Accessory
Number of Conductors 3
Applications insulates and provides protection for electrical spring connectors against dust, soil, water and other environmental elements.
Connection Type Wire
Family Brand Name Scotchcast
Sub Brand Scotchcast
