3M 3C-BOK-2 3C-BOK-2 BREAKOUT KIT
$240.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 3C-BOK-2
Irby Part # 3662823

Specifications

  • Conductor Size for 5 kV at 100% Insulation: 1–3/0
  • RoHS 2011/65/EU Compliant: Undetermined
  • Conductor Size for 15 kV at 100% Insulation: 2–1
  • Maximum Cable Outside Diameter (metric): 67.8 mm
  • Conductor Size for 5 kV at 133% Insulation: 2–2/0
  • Cable Insulation Outside Diameter Range: 0.50-0.70 in
  • RoHS EU Comments: Contact 3M for information
  • Conductor Size for 8 kV at 100% Insulation: 2–2/0
  • Conductor Size for 8 kV at 133% Insulation: 2–2/0
  • Cable Insulation Outside Diameter Range (metric): 12.7-17.8 mm
  • Maximum Cable Outside Diameter: 2.67 in

Documents

Overview

UPC 05112860685
Family Brand Name 3M

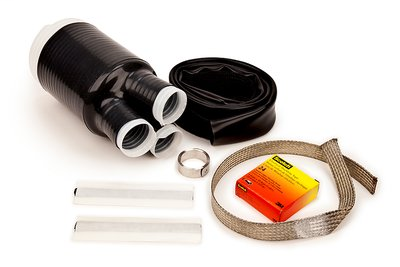

Item Long Description The 3M Cold Shrink Three Conductor Breakout Kit includes everything you need to use 3M Single Conductor Accessories on three conductor cables. This offers you much greater flexibility for 3/C medium voltage applications especially in tight spaces.
GTiN 00051128606858
