3M 40137 Copper/Aluminum 2-Hole Lug
Product image thumbnail 0
Product image thumbnail 1
$11.10/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 40137
Irby Part # 22755

Features

  • Standard barrel ensures a secure fit and offers reliable performance
  • Barrel sealing caps are color coded to help to indicate the wire guage
  • Made of aluminum for good conductivity and tin plating for corrosion resistance
  • Rated for 35 kV voltage applications
  • UL Listed and RoHS 2011/65/EU Compliant

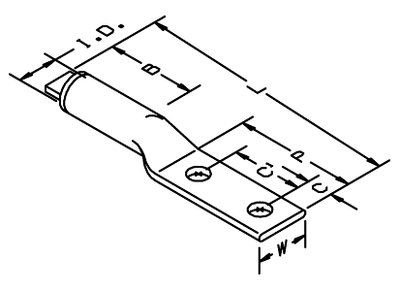

Specifications

  • Barrel Length (Imperial): 1.5 in
  • Barrel Length (Metric): 38.1 mm
  • Barrel Style: Standard Barrel
  • Center of Hole to Center of Hole: 1.75 Inch
  • Center of Hole to Center of Hole (Metric): 44.5 mm
  • Center of Hole to End of Pad: 0.62 Inch
  • Center of Hole to End of Pad (Metric): 15.7 mm
  • Color Family: Green
  • Conductor Size: 2.0 AWG
  • Connector Description: Two hole
  • For Use With: Aluminum or Copper Conductors
  • Inside Diameter (Metric): 11.2 mm
  • Lug Type: Compression Lugs
  • Material: Aluminum
  • Maximum Conductor Size: 2 AWG
  • Maximum Operating Voltage: 35 Kilovolt
  • Number of Stud Holes: 2
  • Outer Diameter (Imperial): 0.687 in
  • Outside Diameter (Metric): 17.5 mm
  • Overall Length (Imperial): 5.5 in
  • Overall Length (Metric): 139.7 mm
  • Pad Length (Imperial): 3.25 in
  • Pad Length (Metric): 82.6 mm
  • Product Color: Olive
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Sizes: 1/2 Inch

Overview

UPC 05400713616
GTiN 00054007136163
Length 5.5 in
Width 0.439 in
Color Green,Olive
Barrel Type Standard Barrel
Stud Size 1/2 in
Conductor Size 2/0 AWG
Applications Aluminum or Copper Conductors
Family Brand Name Scotchlok
Barrel Length 1.5 in
Inside Diameter 0.439 in
Sub Brand Scotchlok
Material Aluminum
Overall Length 5.5 in
