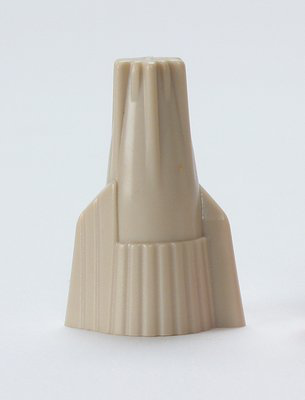

3M 412-Box 100/Box Tan Spring Connector
$0.14/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 412-BOX
Irby Part # 3068488

Overview

3M™ Electrical Spring Connector 412 with a wide spring opening facilitates easy and fast insertion of large wire combinations. This hex-head connector is capable of a 1-conductor termination. It is also suitable for 2 or more conductor connections in a pigtail application. The insulator is manufactured with a flame-retardant PVC.

3M™ Electrical Spring Connector 412 features a steel spring with corrosion-resistant coating and a durable PVC insulator. The molded insulator resists warping and expansion when pushed to the upper limits of its wire ranges. The connector is 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed and CSA Certified.

  • Hex-head design provides ability to use a socket for quick installation
  • Wide spring opening enables easy and fast insertion of large wire combinations
  • Tan flame-retardant PVC insulator
  • Accommodates a range of 22 to 8 AWG copper conductors
  • Corrosion-resistant steel spring
  • Withstands temperatures up to 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
  • UL Listed and CSA Certified
  • 100/box, 1000/case

Specifications

  • 3M ID: 80611237720
  • Agency Approvals: UL and CSA
  • Brand: 3M
  • Color: Tan
  • Conductor Sizes: 22 - 10 AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Family: 3M™ Electrical Spring Connector
  • Flame Retardant: Yes
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 22 AWG
  • Packaging: Box
  • Product Family: 3M™ Electrical Spring Connector
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Trademark: 3M

Overview

UPC 05112854451
GTiN 00051128544518
Color Tan
Temperature Rating 221 F
Family Brand Name 3M
Tc Connection Twist On
Voltage 600/1,000 Volt
Product Type Connector
Conductor Size 22-10 AWG
Connection Type Wire
Max Operating Temperature 221 degrees F
