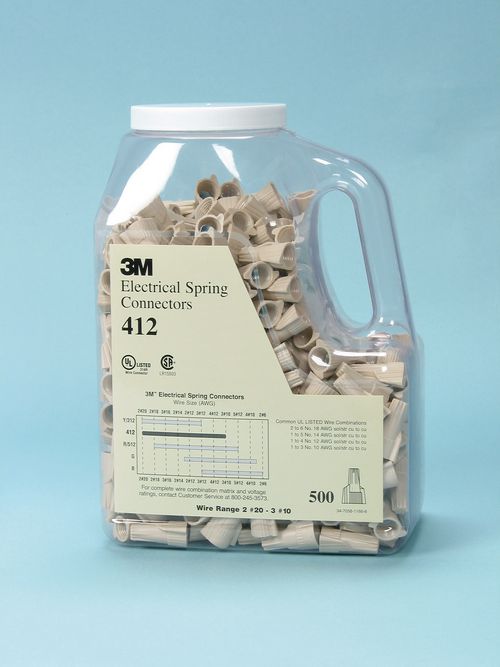

3M 412-Jug 500/Jug Tan Spring Connector
Product image thumbnail 0
Product image thumbnail 1
$0.12/ea
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 412-Bag
Irby Part # 2953784

Overview

3M™ 412 Twist-On Electrical Spring Connector with a wider spring opening facilitates easier and faster insertion of larger wire combinations. This hex-head connector is capable of a 1-conductor termination. Its PVC construction provides a flame-retardant property to the connector. It is also suitable for 2 or more conductor connection in a pigtail application.

3M™ 412 Twist-On Electrical Spring Connector features a steel spring with corrosion-resistant coating and a durable PVC insulator. The molded insulator resists warping and expansion when pushed to the upper limits of its wire ranges. Connector is 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed and CSA Certified.

  • Hex-head design for 1-conductor termination, 2 or more conductor connections in a pigtail application
  • Wider spring opening enables easier and faster insertion of larger wires
  • Suitable for electrically connecting copper conductors in pigtail applications
  • Useful for holding copper 22 to 10 AWG conductors sizes
  • Tan flame-retardant PVC insulation and has corrosion-resistant coated spring steel construction
  • Withstands temperatures up to 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
  • UL Listed and CSA Certified
  • 500/bag

Specifications

  • 3M ID: 80611608151
  • Agency Approvals: UL and CSA
  • Color: Tan
  • Conductor Size: 22–10 AWG
  • Conductor Sizes: 22 - 10 AWG
  • Connection Type: Wire
  • Connector Style: Twist On
  • Family: 3M™ Electrical Spring Connector
  • Flame Retardant: Yes
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 22 AWG
  • Packaging: Bag
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption

Overview

UPC 05112855695
Family Brand Name 3M
GTiN 00051128556955
Color Tan
Voltage 600/1000 Volt
Product Type Connector
Conductor Size 10 AWG
Connection Type Wire
Temperature Rating 221 F
TC Connection Twist On
Max Operating Temperature 221 degrees F
