3M 4460-DS SHIELD CONNECTOR WITH PA

Overview

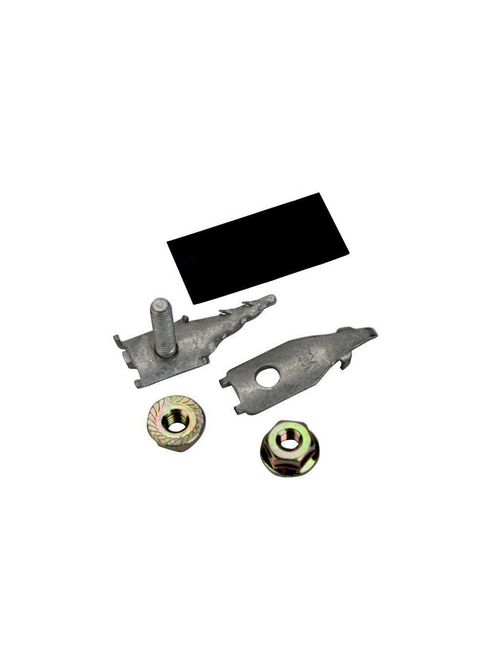

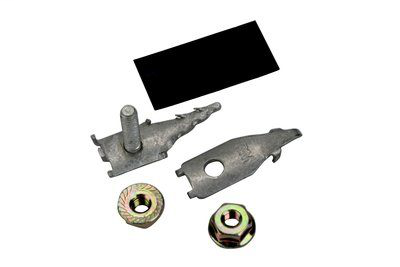

3M™ Scotchlok™ Shield Bond Connector 4460-DS with an insulating shoe provides a stable and low-resistant electrical connection between communication cables with a diameter of up to 0.8 inches and a conductor that includes a strap, wire and braid.

3M™ Scotchlok™ Shield Bond Connector 4460-DS is compatible with SLiC™ aerial closures and terminals. This connector comes with a small piece of a pair saver to help with the connector insertion and to protect the conductors.

• Offers a stable, low-resistant electrical connection between the shield of a communications cable and a conductor
• Features a flanged nut and an insulating shoe
• Ideal for aerial strand-mount applications
• Compatible with SLiC™ terminals and all copper closures
• Suitable for up to 100-pair copper cables
• Comes with a small piece of a pair saver to help with the connector insertion and to protect the conductors
• 100 each/box

Specifications

• 3M ID: 80611316417
• Accessory Type: Shield Connector
• Alligator Jaws: No (Slitting Required)
• Applications: Aerial Strand Mount
• Bonding Type: Shield Bond Connector
• Cable Type: Copper
• Compatible With: All Copper Closures, Spiral End Seal SLiC™ Terminals
• Encapsulated: No
• Flame Retardant: No
• Indoor/Outdoor: Outdoor
• Nut Type: Flanged
• Product Type: Accessory
• Solution for: Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Long-haul/Metro Loop Network: Outdoor
• Trademark: Scotchlok
• With a Protective Shoe: Yes
