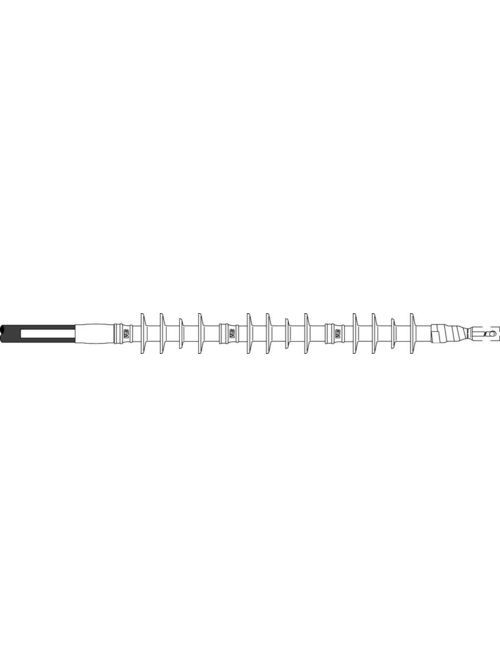

3M 4605 4605 46KV QTII
Product image thumbnail 0
Product image thumbnail 1
$1,816.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 4605
Irby Part # 2776798

Features

  • For tape shield, wire shield and longitudinally corrugated power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor, weather exposed applications
  • Silicone rubber insulation is track-resistance and hydrophobic
  • Silicone cold shrink application provides constant radial pressure, "living seal"
  • Withstands voltages up to 46kV and is 250kV BIL-rated
  • Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

Specifications

  • Arcing Distance: 30 in
  • Arcing Distance (Metric): 76.2 cm
  • BIL: 250 kV
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 1.80-2.60 in
  • Cable Insulation Outside Diameter Range (Metric): 45.7-66.1 mm
  • Cable Shielding: Wire Shield - Longitudinally Corrugated (LC) - Tape Shield
  • Conductor Size Range: 600-1500 kcmil
  • Conductor Sizes: 900 kcmil - 700 kcmil - 1000 kcmil - 600 kcmil - 750 kcmil - 800 Kcmil - 1500 kcmil - 1250 kcmil
  • Creepage Distance: 46 in
  • Creepage Distance (Metric): 1.17 m
  • Family: QT-II
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 133% - 100%
  • Insulation Outer Diameter (Imperial): 2.54 in - 2.48 in - 1.94 in - 2.11 in - 2.09 in - 2.31 in - 2.1 in - 1.86 in - 2.39 in - 2 in - 2.21 in - 1.9 in - 2.29 in - 2.34 in - 2.28 in - 2.38 in - 2.44 in - 2.47 in - 2.17 in - 1.97 in - 2.56 in - 1.82 in - 1.96 in - 0.69 in - 2.23 in - 2.24 in - 2.19 in - 2.03 in - 1.99 in - 2.07 in - 1.91 in - 2.35 in - 1.81 in - 2.27 in - 1.83 in - 2.05 in - 2.5 in - 2.52 in - 1.8 in - 2.01 in - 2.53 in - 2.02 in - 2.58 in - 2.26 in - 2.15 in - 1.85 in - 2.4 in - 2.36 in - 2.37 in - 2.04 in - 2.33 in - 2.14 in - 2.08 in - 2.49 in - 1.84 in - 2.42 in - 1.87 in - 2.06 in - 2.51 in - 2.22 in - 2.41 in - 2.6 in - 1.98 in - 2.2 in - 2.57 in - 2.55 in - 1.92 in - 2.13 in - 2.12 in - 1.93 in - 2.32 in - 2.59 in - 2.45 in - 2.3 in - 1.95 in - 2.25 in - 2.18 in - 1.89 in - 1.88 in - 2.43 in - 2.16 in - 2.46 in
  • Insulation Outer Diameter (Metric): 55.626 mm - 58.674 mm - 64.77 mm - 57.15 mm - 47.498 mm - 46.482 mm - 53.594 mm - 54.102 mm - 59.944 mm - 50.038 mm - 60.96 mm - 51.816 mm - 58.166 mm - 55.88 mm - 57.912 mm - 55.118 mm - 46.228 mm - 49.784 mm - 63.5 mm - 64.516 mm - 50.8 mm - 48.006 mm - 52.578 mm - 48.26 mm - 51.308 mm - 63.754 mm - 65.278 mm - 64.262 mm - 62.23 mm - 58.928 mm - 46.99 mm - 54.864 mm - 66.04 mm - 59.69 mm - 57.404 mm - 46.736 mm - 65.532 mm - 55.372 mm - 54.356 mm - 50.546 mm - 65.786 mm - 61.976 mm - 58.42 mm - 52.832 mm - 51.562 mm - 61.468 mm - 64.008 mm - 57.658 mm - 53.086 mm - 61.214 mm - 47.244 mm - 56.388 mm - 56.642 mm - 53.34 mm - 59.182 mm - 65.024 mm - 60.706 mm - 53.848 mm - 49.53 mm - 47.752 mm - 45.72 mm - 62.992 mm - 54.61 mm - 56.134 mm - 63.246 mm - 60.452 mm - 51.054 mm - 61.722 mm - 52.324 mm - 56.896 mm - 52.07 mm - 49.022 mm - 49.276 mm - 60.198 mm - 59.436 mm - 50.292 mm - 48.768 mm - 62.484 mm - 45.974 mm - 48.514 mm - 62.738 mm
  • Insulation Rejacketing: No
  • Maximum Installed Length: 28.0 in
  • Number of Conductors: 1
  • Number of Skirts: 12
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 46 kV

Overview

UPC 05400750193
Item Long Description 3M Cold Shrink QT II 4604 & 4605 Series Termination Kit includes a 12 skirt, 3 piece termination. It ensures a pliable, tight seal for tape shield, wire shield and longitudinally corrugated power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 46kV.
GTiN 00054007501930
Type QT-II
Conductor Size 750 MCM
Applications Outdoor
Cable Type Longitudinally Corrugated (LC); Tape Shield; Wire Shield
Family Brand Name 3M
Voltage 46 kV
Number of Conductors 1
