3M 4C Size C 14.7 oz Insulating Resin
Usually ships within 16 to 26 Days
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 4C
Irby Part # 22753

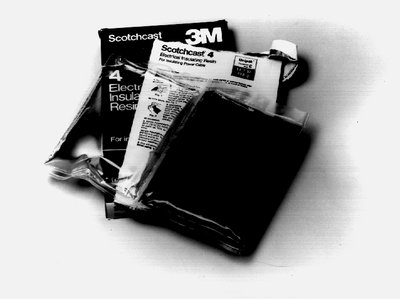

3M Scotchcast Electrical Insulating Resin 4 Size C (14.7 oz) is a two-part epoxy insulating and encapsulating resin packaged in three sizes. This resin, mixed in its unique container bag, generates its own heat to cure. Its compatibly with solid and synthetic cable insulations and jackets makes 4 resin an excellent insulator and sealer for cable splicing. Use 3M Scotchcast Resin 4 to splice solid dielectric and oil filled cables up to 8 kV and to jacket high voltage splices through 69 kV. It is included in the 82 and 90-B1 Series splice kits. Gel time is 16 min. at 23(deg)C.


  • Trademark: Scotchcast
  • Material: Epoxy
  • Hardness: 80 Shore D
  • Color: Black
  • Dielectric Strength: 500 Millivolt
  • RoHS 2011/65/EU Compliant: Yes
  • Maximum Operating Temperature: 130 Degree Celsius
  • Container Size: bag size C - 14.7 oz
  • Gel Time: 16 Minutes at 73(deg)F (23(deg)C)
  • Tensile Strength: 4900 Pound-Force Per Square Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Elongation: 4 %
  • Minimum Operating Temperature: 0 Degree Celsius



UPC 05400743167
GTiN 00054007431671
Color Black
Material Epoxy
Applications For Cable Splicing
Family Brand Name 3M
Spec Gravity 1.16 (Part A), 1.03 (Part B)
Dielectric Strength 500 V/mil
Flash Point >= 201 F (Part A)
Tensile Strength 4900 lb/in
Sub Brand Scotchcast
