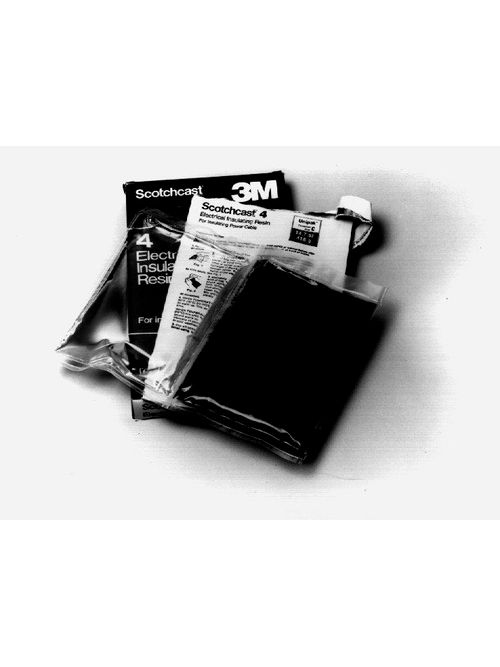

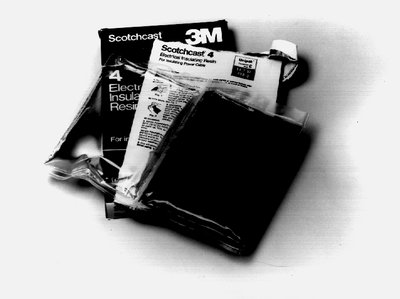

3M 4-E Scotchcast 10.4 oz Electrical Insulating Resin
$46.50/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 4E
Irby Part # 2981335

Overview

3MScotchcast Electrical Insulating Resin 4 Size E (10.3 oz) is a two-part epoxy insulating and encapsulating resin packaged in three sizes. This resin, mixed in its unique container bag, generates its own heat to cure. Its compatibly with solid and synthetic cable insulations and jackets makes 4 resin an excellent insulator and sealer for cable splicing. Use 3MScotchcast Resin 4 to splice solid dielectric and oil filled cables up to 8 kV and to jacket high voltage splices through 69 kV. It is included in the 82 and 90-B1 Series splice kits. Gel time is 16 min. at 23(deg)C.

Specifications

  • Color: Black
  • Hardness: 80 Shore D
  • Tensile Strength: 4900 Pound-Force Per Square Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Elongation: 4 %
  • Minimum Operating Temperature: 0 Degree Celsius
  • Gel Time: 16 Minutes at 73(deg)F (23(deg)C)
  • Dielectric Strength: 500 Millivolt
  • Material: Epoxy
  • Container Size: bag size E - 10.3 oz
  • Maximum Operating Temperature: 130 Degree Celsius
  • Trademark: Scotchcast
  • RoHS 2011/65/EU Compliant: Yes

Documents

Overview

UPC 05400704207
GTiN 00093045004157
Color Amber (Part A), Black (Part B)
Material Epoxy
Family Brand Name 3M
Dielectric Strength 500 V/mil
Applications For Splicing Solid Dielectric and Oil Filled Cables
Spec Gravity 1.16 (Part A), 1.03 (Part B)
Flash Point >= 201 F (Part A)
Tensile Strength 4900 lb/in
Sub Brand Scotchcast
