3M 5302 (3 Splices/Kit) Motor Lead Splicing Kit
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5302
Irby Part # 22763

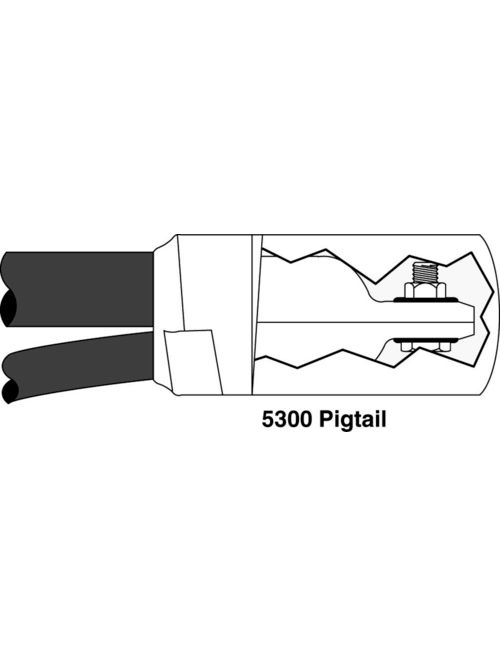

  • Splices motor lead cables to incoming feeder cables
  • Designed to use with copper compression, 1-hole lugs
  • Slip-on lug cover is made of durable EPDM rubber
  • For pigtail (stub) connections at 1000V or less
  • Includes 3 each of pigtail lug covers, mastic sealing strips, and tubes of silicone grease, plus an instruction sheet
  • CSA Certified and RoHS 2011/65/EU Compliant‎


  • Application: Cross Linked Polyethylene Cable - Polyethylene Cable - For Insulating and Sealing Motor Lead Connections for Copper Conductors - Ethylene Propylene Rubber Cable
  • Application/Industry: Industrial Construction - Commercial Construction
  • Cable Shielding: Single Conductor Cable
  • Color Family: Black
  • Connection Type: Pigtail (Non-Shielded)
  • Family: 5300
  • Kit Includes: (3) Pigtail Lug Covers
  • Lug Cover Inner Diameter: 0.95 in
  • Lug Cover Inner Diameter (Metric): 24.1 mm
  • Lug Cover Length: 4.2 in
  • Lug Cover Length (Metric): 106.7 mm
  • Maximum Bolt Length: 3/4 in
  • Maximum Bolt Length (Metric): 19.1 mm
  • Maximum Feeder Lead Size: 1/0 AWG
  • Maximum Motor Lead Size: 1/0 AWG
  • Maximum Operating Voltage: 1 kV
  • Product Color: Black
  • Range Feeder Cable (AWG & kcmil): 2-1/0
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Splice Type: Pigtail Only
  • Voltage: 1 kV and less


UPC 05400712264
GTiN 00054007122647
Voltage 1000 Volt
Cable Size 2. - 0
Connection Type Pigtail
Family Brand Name 3M
Color Black
Applications Cross Linked Polyethylene Cable,Ethylene Propylene Rubber Cable,For Insulating And Sealing Motor Lead Connections For Copper Conductors,Polyethylene Cable
