3M 5321 Motor Lead 3 Splices/Kit Splicing Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$236.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5321
Irby Part # 22771

Overview

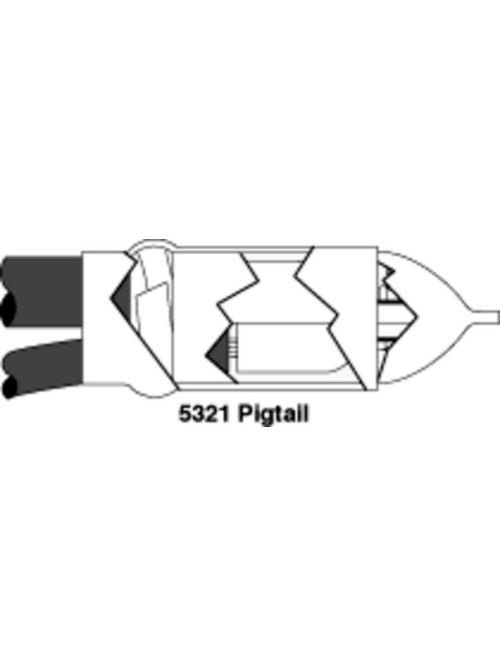

3M™ 5300 Series Motor Lead Pigtail Splice Kit is perfect to use with copper compression lugs. This shielded and non-shielded splice kit is suitable for splicing motor lead cables to the incoming feeder cables. This kit is rated for 5/8 kV-rated applications.

3M™ 5300 Series Motor Lead Pigtail Splice Kit contains 3 each of pigtail lug covers, cold shrink tubes, silicone grease tubes, solvent cleaning cloths, splicing tape 130C and more. This shielded and non-shielded splice kit features a slip-on splice cover that is made of a durable EPDM rubber while mastic strips are used for moisture-seal applications. It includes high dielectric-constant stress control for reducing the size and electrical stress. This kit is perfect for splicing polyethylene/cross-linked cable, ethylene propylene rubber cable, copper conductors and more. RoHS 2011/65/EU Compliant‎.

  • Features shielded, non-shielded cables
  • Designed for splicing motor lead cables to the incoming feeder cables
  • Suitable for use with 30000 Series copper compression lugs or other UL Listed copper lugs
  • 0.3 to 0.51-in O.D. insulation
  • Accommodates wire size of 8 to 4 AWG
  • Rated for 5/8 kV applications
  • Includes 3 pigtail lug covers, 3 rolls Scotch® stress-control tape 2200, 9 mastic sealing strips, 3 instruction sheets and more
  • Withstands temperatures of 194 degrees F (90 degrees C)
  • RoHS 2011/65/EU Compliant
  • 1 kit/case

Specifications

  • 3M ID: 80610735187
  • Brand: 3M
  • Connection Type: Pigtail (Non-Shielded), Pigtail (Shielded)
  • Insulation Outside Diameter: 0.30-0.51 Inch
  • Insulation Outside Diameter Range: 0.30-0.51 in
  • Range Feeder Cable (AWG & kcmil): 8-4
  • Range Motor Lead (AWG & kcmil): 10-4
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Trademark: 3M™
  • Voltage: 5 - 8 kV

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400712271
GTiN 00054007122715
Color Black
Operating Temperature 90C
Voltage 8 kV
Connection Type Pigtail (Non-Shielded),Pigtail (Shielded)
Family Brand Name 3M
