3M 5322 Motor Lead 3 Splices/Kit Splicing Kit
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5322
Irby Part # 22772


  • Connection Type: Pigtail (Shielded) - Pigtail (Non-Shielded)
  • Lug Cover Length: 8-9 in
  • Lug Cover Length (Metric): 203.2-228.6 mm
  • Maximum Bolt Length: 3/4 in
  • Maximum Bolt Length (Metric): 19.1 mm
  • Maximum Feeder Lead Size: 1/0 AWG
  • Maximum Motor Lead Size: 1/0 AWG
  • Maximum Operating Voltage: 8 kV
  • Range Feeder Cable (AWG & kcmil): 2-1/0
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption

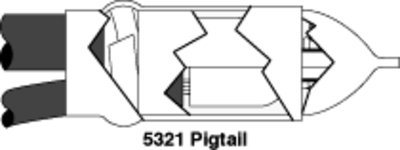

  • Splice Type: Pigtail Only
  • Voltage: 5 - 8 kV


UPC 05400712272
GTiN 00054007122722
Color Black
Operating Temperature 90C
Voltage 5/8 kV
Connection Type Pigtail
Family Brand Name 3M
