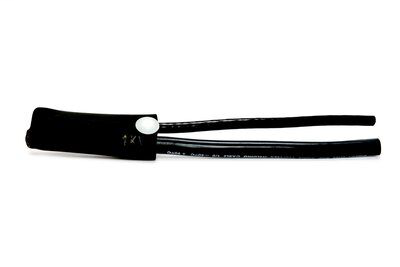

3M 5324 Motor Lead (3 Splices/Kit) Splicing Kit
$435.00/ea
Usually ships within 8 to 12 Days
EA
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 5324
Irby Part # 76474

Features

  • 3M™ 5300 Series Motor Lead Pigtail Splice Kit contains 3 each of pigtail lug covers, cold shrink tubes, silicone grease tubes, solvent cleaning cloths, splicing tape 130C and more. This shielded and non shielded splice kit features a slip on splice cover that is made of a durable EPDM rubber while mastic strips are used for moisture seal applications. It includes high dielectric constant stress control for reducing the size and electrical stress. This kit is perfect for splicing polyethylene/cross linked cable, ethylene propylene rubber cable, copper conductors and more. RoHS 2011/65/EU Compliant‎.

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610735211
  • Brand: 3M™
  • Cable Type: Polymeric insulated cables
  • Conductor Size Range: 95 - 240 mm²
  • Connection Type: Pigtail (Non-Shielded) || Pigtail (Shielded)
  • Indoor/Outdoor: Indoor
  • Insulation Outside Diameter: 0.75-1.12 Inch
  • Insulation Outside Diameter Range: 0.75-1.12 in
  • Insulation Outside Diameter Range (Metric): 1.90 - 28.4 mm
  • Lug/Stem Connector Included in Kit: No
  • Lug Cover Length: 10.5-11.5 in
  • Lug Cover Length (Metric): 266.7-292.1 mm
  • Manufacturing Origin: USA
  • Maximum Bolt Length: 1-1/2 in
  • Maximum Bolt Length (Metric): 38.1 mm
  • Maximum Motor Lead Size: 500 kcmil
  • Maximum Operating Voltage: 8 kV
  • Maximum Wire Gauge: 240mm²
  • Minimum Wire Gauge: 95mm²
  • Number of Conductors: 1
  • Number of Skirts: 0
  • Range Feeder Cable (AWG & kcmil): 250-500
  • Splice Type: Pigtail Only
  • Voltage: 5/8 kV

Overview

UPC 05400712274
GTiN 00054007122746
Color Black
Operating Temperature 90C
Voltage 5/8 kV
Number of Conductors 1
Connection Type Pigtail (Non-Shielded),Pigtail (Shielded)
Family Brand Name 3M
Material Polymeric Cable
Conductor Size 250 AWG - 500 kcmil Feeder Cable, 4/0 AWG - 500 kcmil Motor Lead
Temperature Rating 90 C
