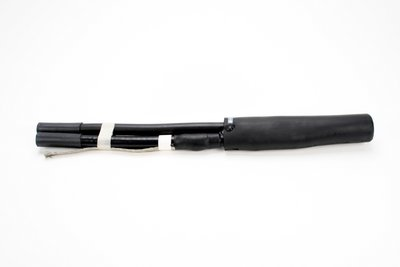

3M 5381 Motor Lead Splicing Kit, 3 Splices/Kit

Features

• Designed for use with 30000 Series copper compression lugs or other UL Listed copper lugs
• Perfect for use with shielded and non-shielded cables
• Rated for 5/8 kV applications
• The lug or splice cover is made of EPDM rubber to resist punctures and abrasion damage
• Includes 6 tubes of silicone grease, 3 cold shrink jacket tubes, 3 cable ties, 3 ground straps and 1 instruction sheet
• Withstands a temperature range of 194 to 266 degrees F (90 to 130 degrees C)

Specifications

• Application: Cable Connection
• Cable Shielding: Ribbon Shield - Wire Shield - Concentric Neutral (CN) - Non-shielded - UniShield® - Jacketed Concentric Neutral (JCN)
• Cable Type: Jacketed Concentric Neutral (JCN) - Concentric Neutral (CN)
• Conductor Material: Copper - Aluminum
• Conductor Sizes: 2/0 AWG - 1/0 AWG - 3/0 AWG - 1 AWG - 250 kcmil - 4/0 AWG
• Connection Type: Pigtail (Non-Shielded) - Pigtail (Shielded)
• Connector Included: None - No
• Maximum Bolt Length: 5/8 in
• Maximum Bolt Length (Metric): 15.9 mm
• Maximum Feeder Lead Size: 4 AWG
• Maximum Lug Length: 2-1/2 in
• Maximum Lug Length (Metric): 63.5 mm
• Maximum Motor Lead Size: 4 AWG
• Maximum Operating Voltage: 8 kV
• Maximum Wire Gauge: 120mm²
• Minimum Wire Gauge: 50mm²
• Number of Conductors: 3 - 1
• Product Type: Splice
• Range Feeder Cable (AWG & kcmil): 8-4
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Splice Type: Pigtail or V-stub
• Typical Splice Length: 30 in
• Typical Splice Length (Metric): 762 mm
• Voltage: 5 - 8 kV
• Voltage Application: Medium Voltage
